X138A

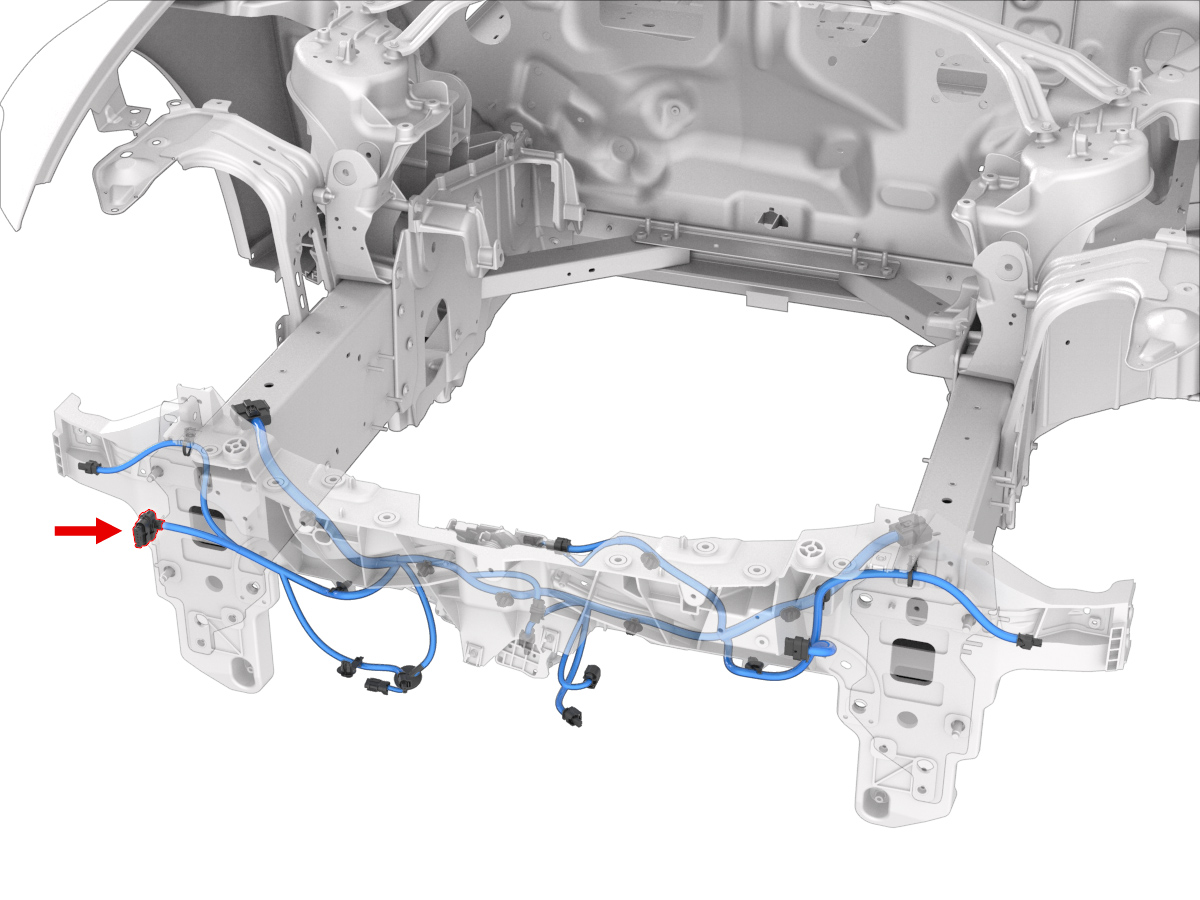

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 | ||
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | BU/WH | 0.35 | AMP | 967067-2 | X960F | 7 |
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | BU | 0.35 | AMP | 967067-2 | X960F | 8 |
| 4 | AMP | 7-1452665-1 | 1.2x0.6FS | RD | 0.35 | AMP | 967067-2 | X966F | 8 |
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
