X143

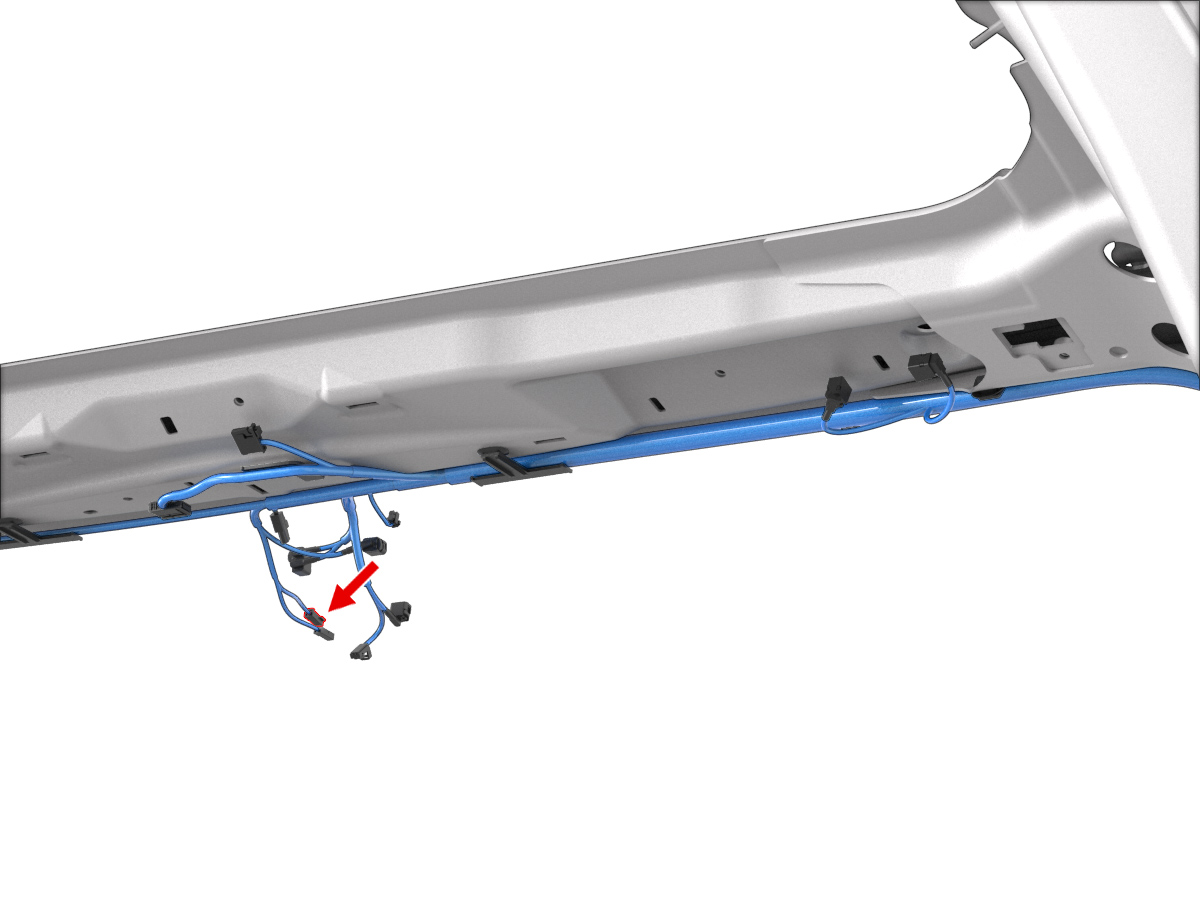

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963715-1 | 0.63x0.63F | RD | 0.50 | X050B | 8 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | BK | 0.50 | G640 | 1 |
