X150

Tesla Part Number

1039297-00-A

Connector

SUMITOMO 6098-4008

Color

WH

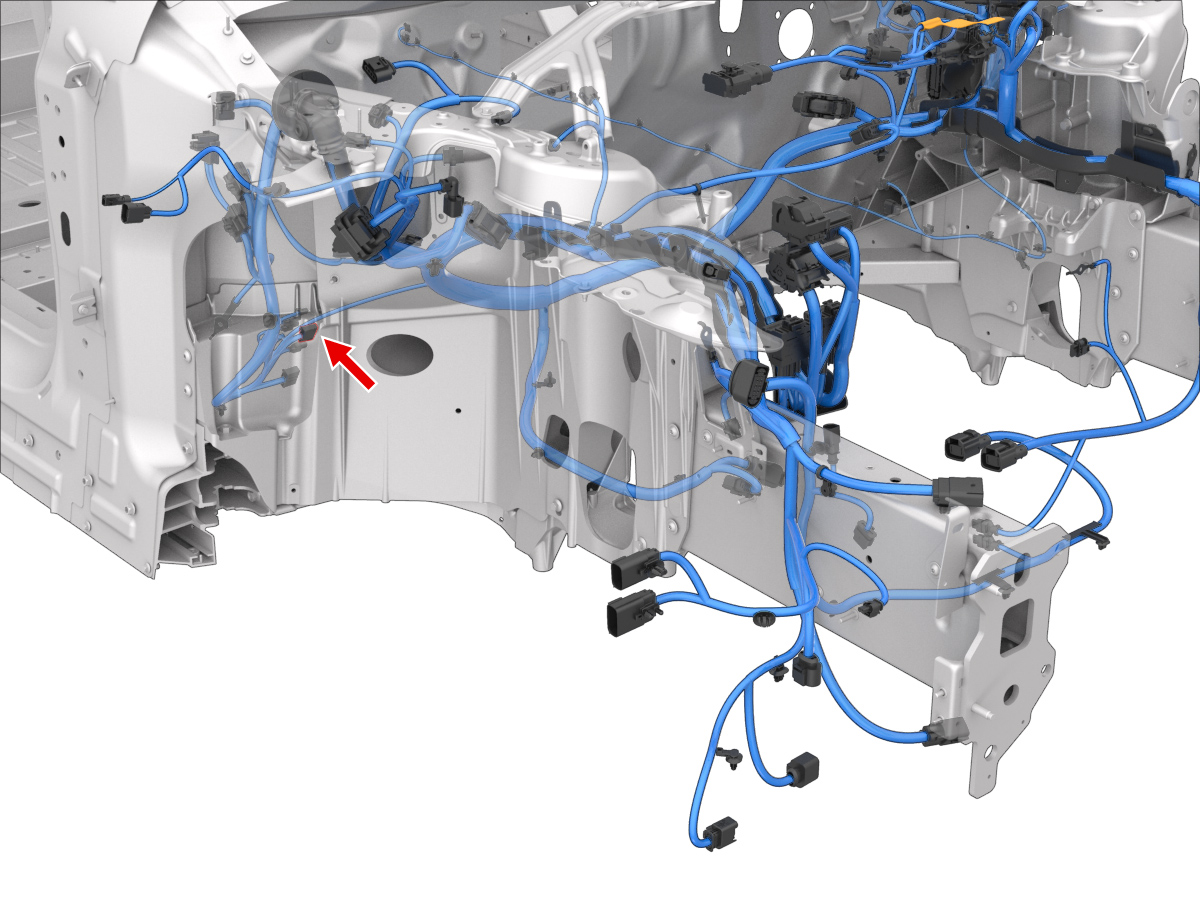

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X057	10
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X057	11
3	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X966M	9
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35
7	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X966M	10
9	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35
11	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X057	24
12	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X057	25
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50
14	unused
15	unused
16	unused
