X241

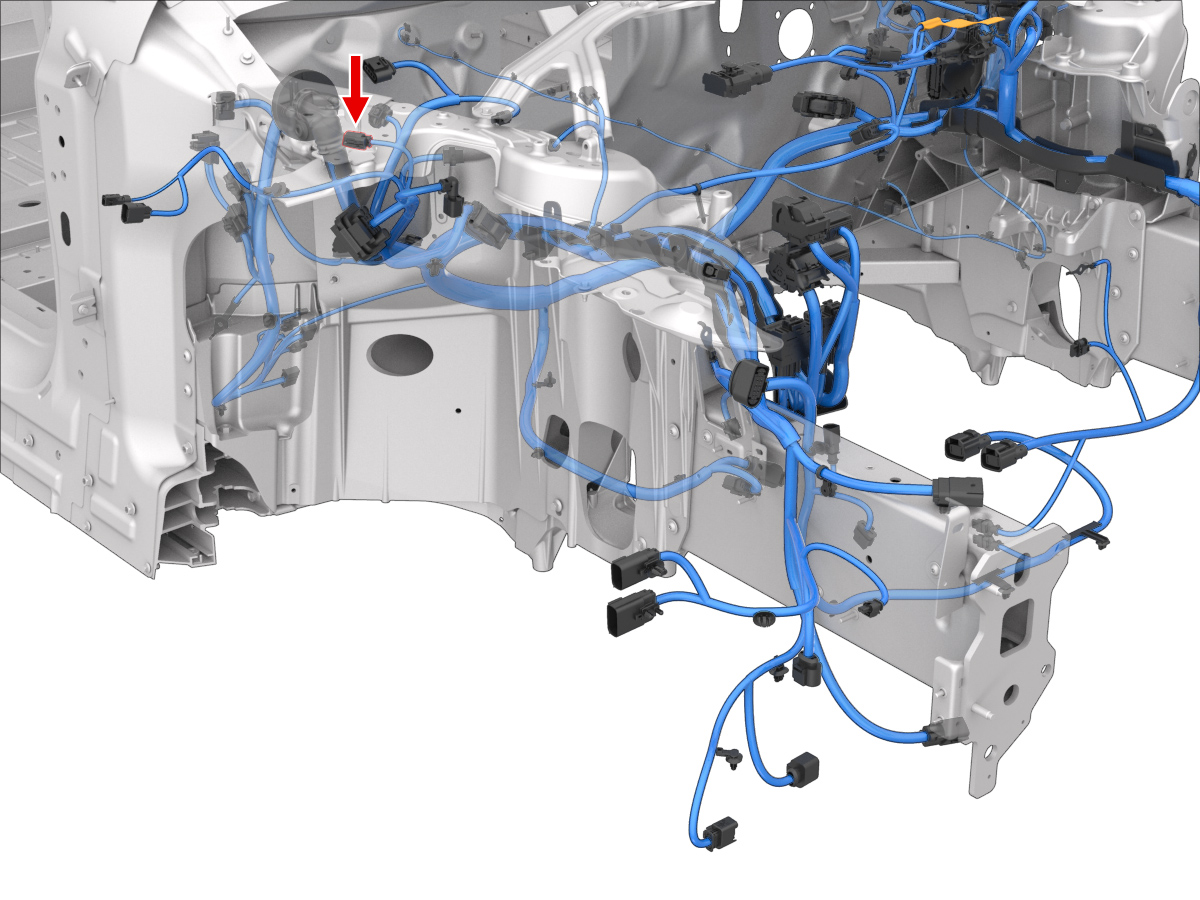

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4221-08 | 1.0x0.64F | BU | 0.50 | YAZAKI | 7158-3070-80 | X037 | 4 |
| 2 | YAZAKI | 7116-4221-08 | 1.0x0.64F | BK | 0.50 | YAZAKI | 7158-3070-80 | X037 | 3 |
