X251

Tesla Part Number

1642203-00-A

Connector

PLASTIMAT 781 300 900

Color

BK

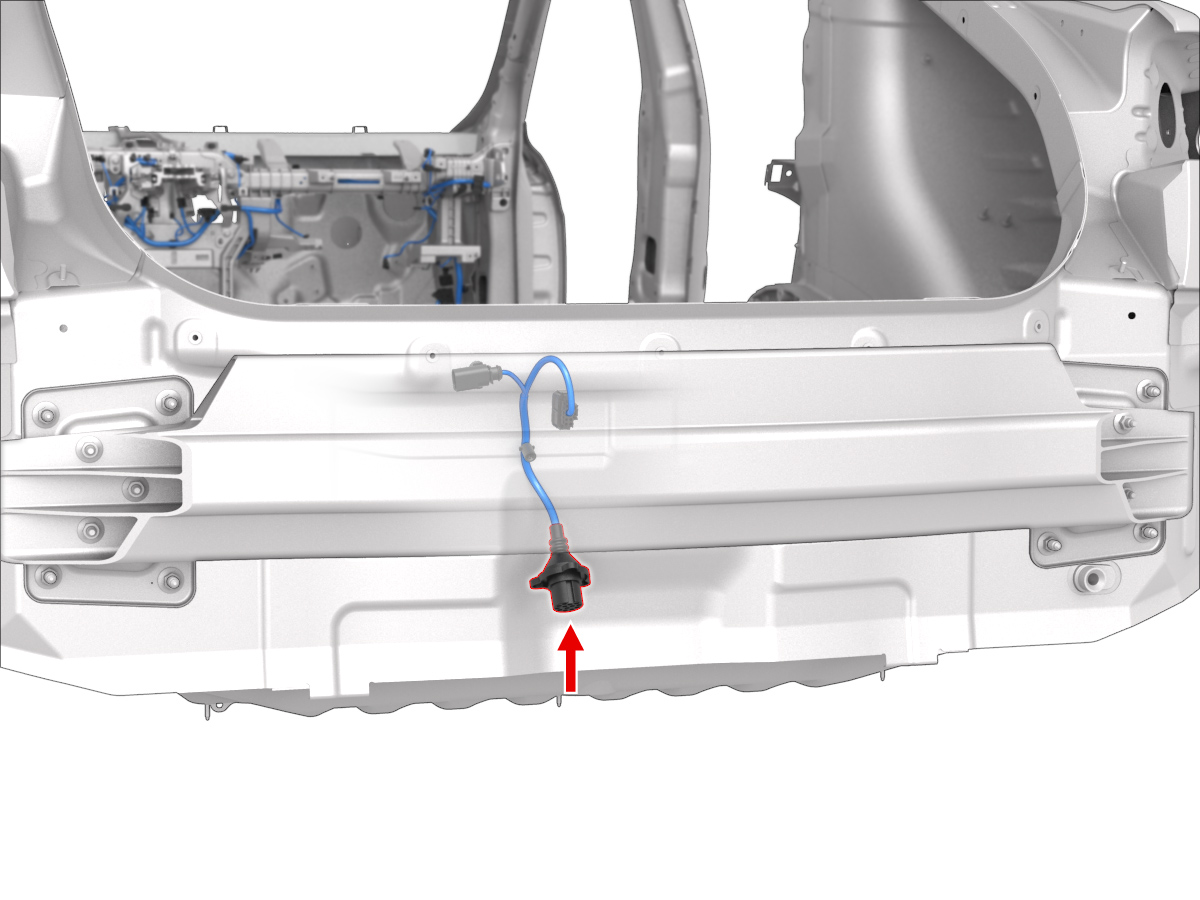

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	929974-1	2.5FS	YE	0.75	AMP	828920-1	X574	10
2	AMP	929974-1	2.5FS	VT	0.75	AMP	828920-1	X574	11
