X287

Tesla Part Number
1015005-00-B
Connector
DELPHI 13623681
Color
BK

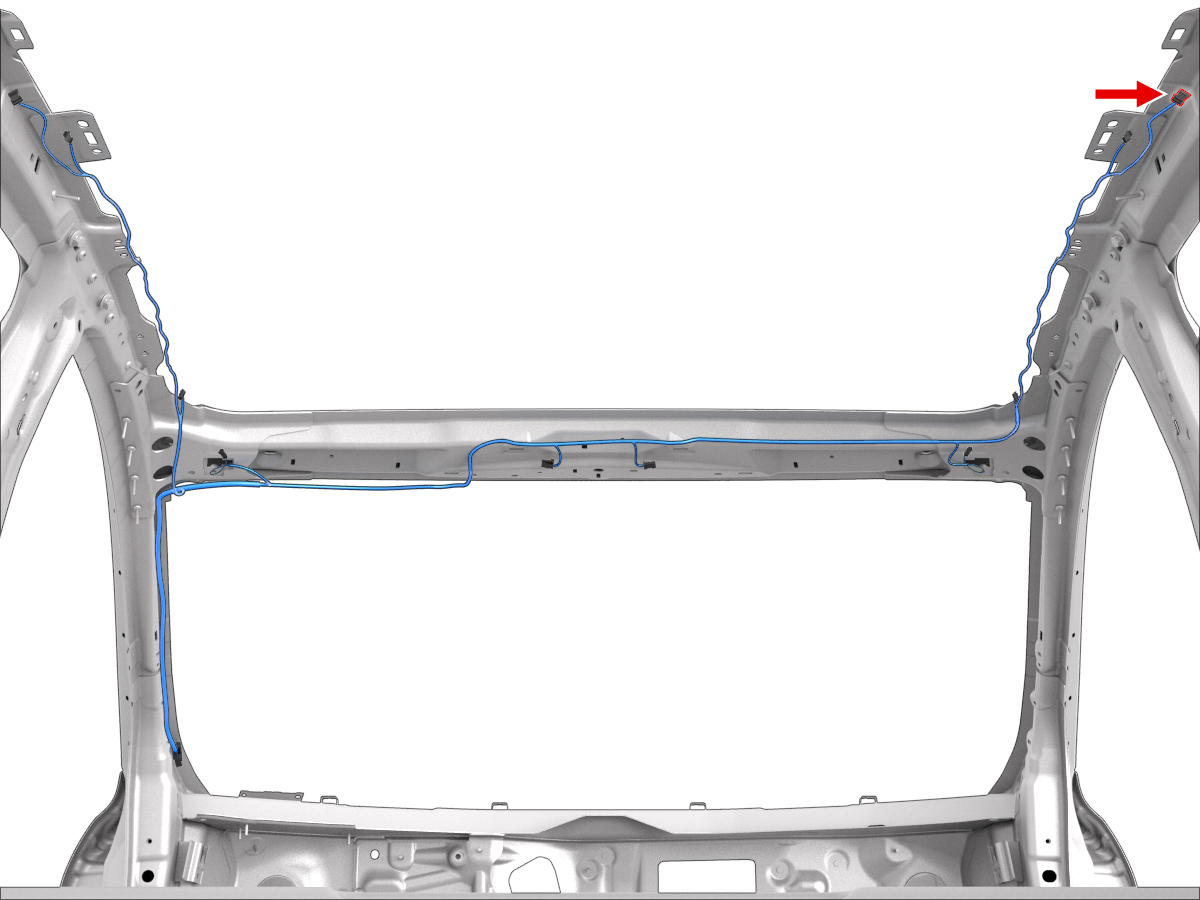

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI135806330.64x0.64FGY0.35X968F3
2DELPHI135806330.64x0.64FGN0.35X968F4
3DELPHI135806330.64x0.64FBN0.35
