X307

Tesla Part Number
1100029-01-A
Connector
AMP 1-936119-1
Color
BK

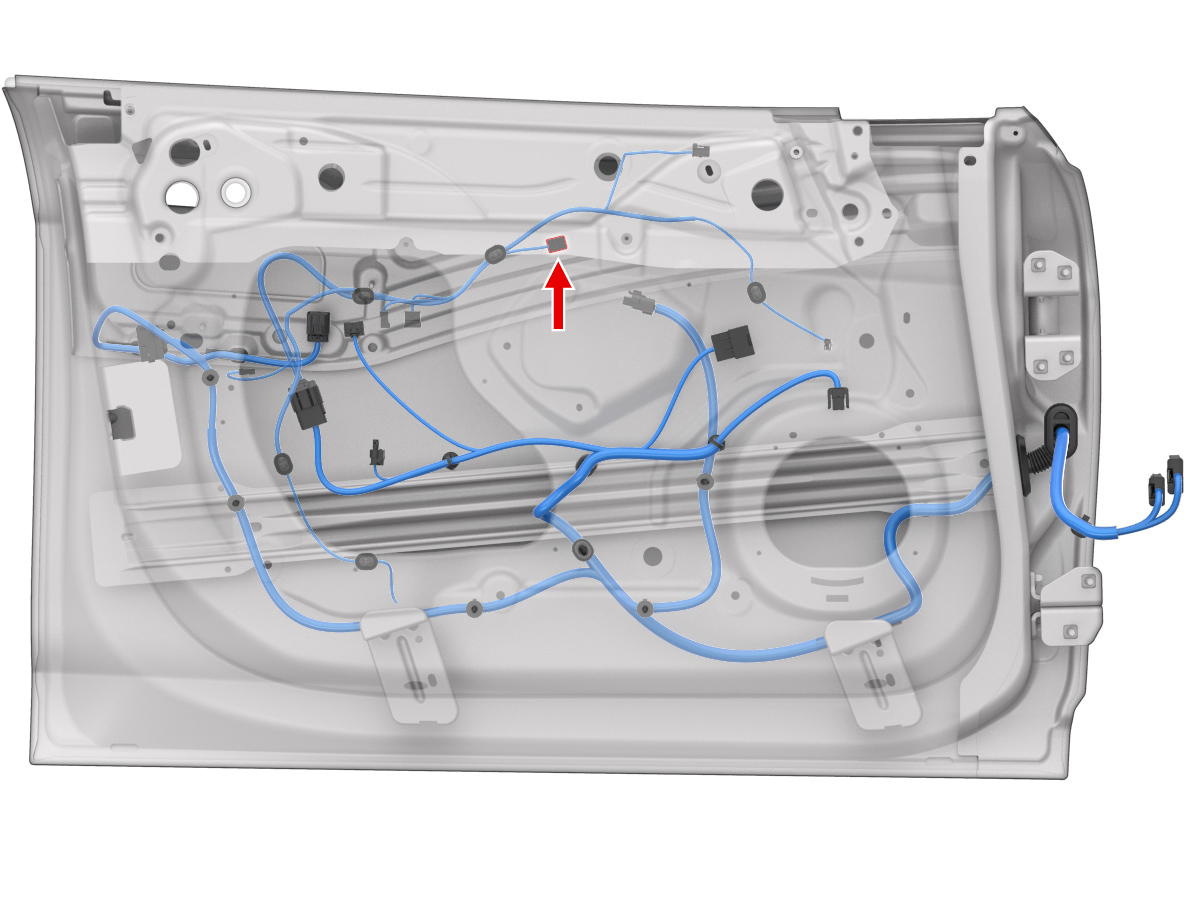

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FRD0.35X927F13
2AMP5-928999-10.63x0.63FGN0.35X927F4
3AMP5-928999-10.63x0.63FVT0.35X927F6
4AMP5-928999-10.63x0.63FBN0.35
