X325

Tesla Part Number

1077101-00-A

Connector

SUMITOMO 6189-6987

Color

GY

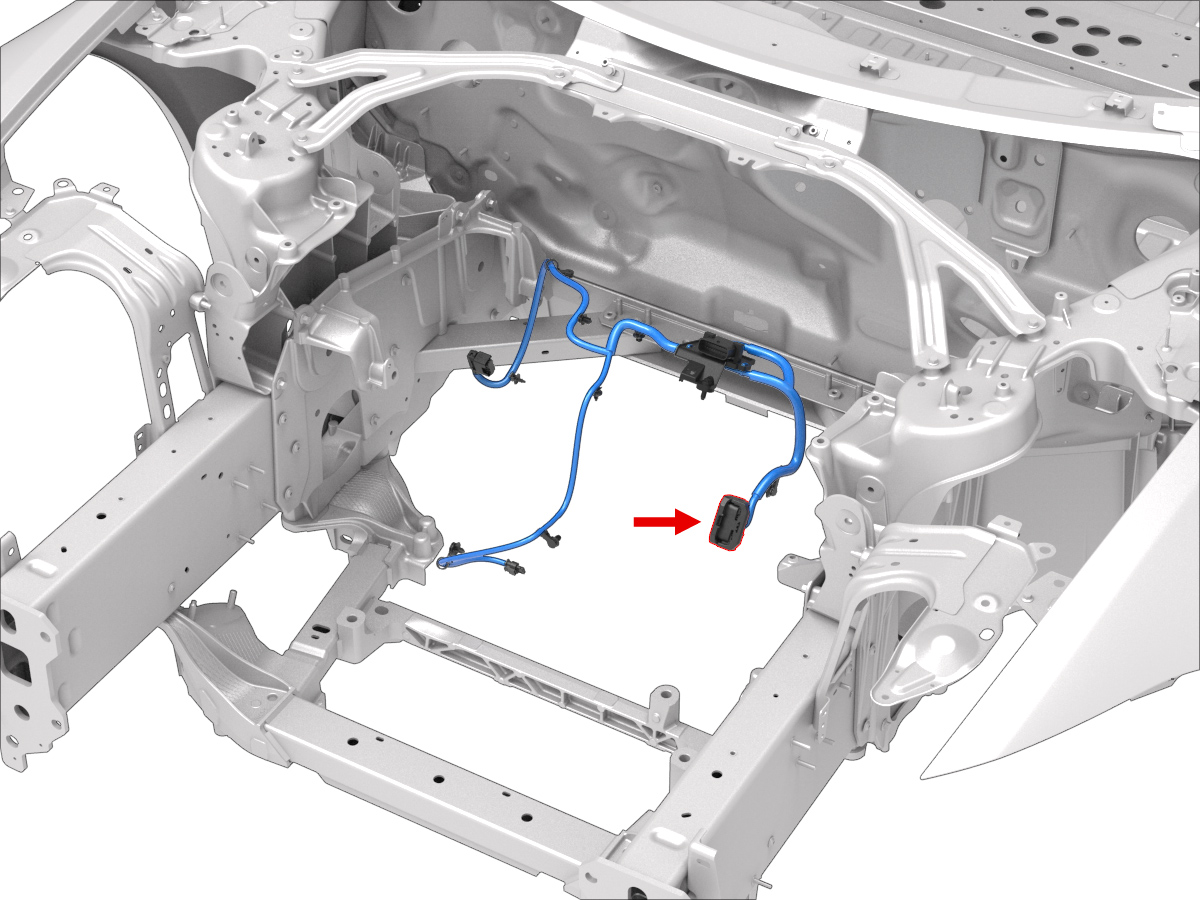

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X995M	4
3	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X995M	1
4	SUMITOMO	8240-0288	0.64x0.64FS	WH	0.50	SUMITOMO	7165-1198	X995M	19
5	unused
6	unused
7	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X326	9
8	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X326	5
9	unused
10	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X327	2
11	unused
12	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X995M	5
13	SUMITOMO	8240-0288	0.64x0.64FS	BK	0.50	SUMITOMO	7165-1198	X995M	10
14	unused
15	unused
16	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X326	8
17	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X326	4
18	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X326	6
19	unused
20	unused
21	unused
22	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X995M	2
23	SUMITOMO	8240-0288	0.64x0.64FS	YE	0.50	SUMITOMO	7165-1198	X995M	18
24	unused
25	unused
26	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X326	3
27	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X326	10
28	SUMITOMO	8100-3456	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X326	1
29	unused
30	unused
