X372

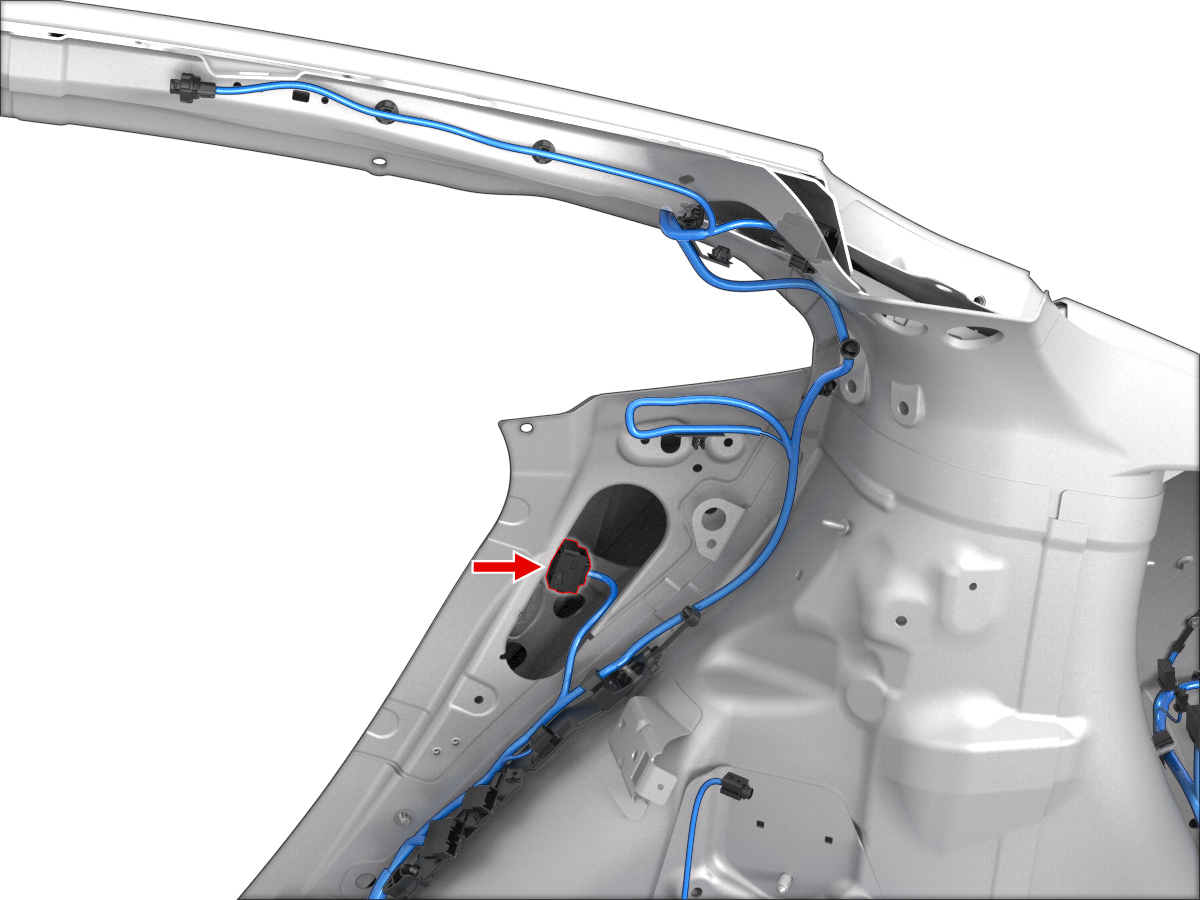

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 969005-3 | 1.6x0.6FS | WH | 0.35 | AMP | 1394133-1 | X052 | 25 |
| 2 | AMP | 969005-3 | 1.6x0.6FS | GN | 0.35 | AMP | 1394133-1 | X052 | 29 |
| 3 | AMP | 969005-3 | 1.6x0.6FS | BN | 0.35 | AMP | 1394133-1 | X062 | 6 |
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | AMP | 969005-3 | 1.6x0.6FS | VT | 0.50 | AMP | 1394133-1 | X062 | 20 |
| 9 | AMP | 969005-3 | 1.6x0.6FS | BU | 0.50 | AMP | 1394133-1 | X062 | 21 |
| 10 | unused | ||||||||
