X391

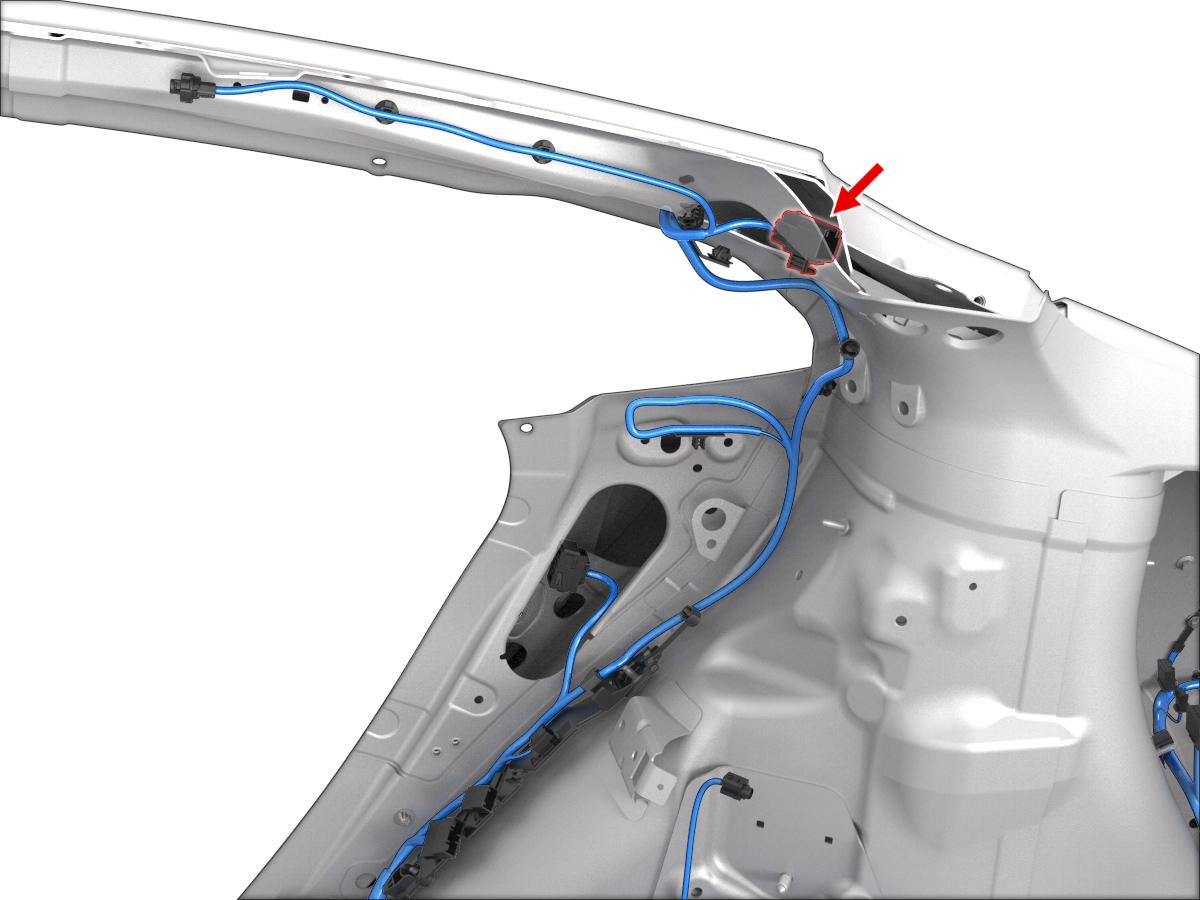

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | FCI | 54001401 | 2.8x0.8M | YE | 2.00 | X975M | 8 | ||
| 3 | unused | ||||||||
| 4 | AMP | 1924968-1 | 0.64x0.64M | RD | 0.50 | X975M | 4 | ||
| 5 | AMP | 1924968-1 | 0.64x0.64M | BN | 0.50 | X975M | 7 | ||
| 6 | AMP | 1924968-1 | 0.64x0.64M | BU | 0.50 | X975M | 6 | ||
| 7 | AMP | 1924968-1 | 0.64x0.64M | WH | 0.50 | X975M | 5 | ||
| 8 | unused | ||||||||
| 9 | FCI | 54001401 | 2.8x0.8M | BU | 2.00 | X975M | 16 | ||
| 10 | unused | ||||||||
