X439

Tesla Part Number
1118256-00-A
Connector
AMP 2302475-2
Color
WH

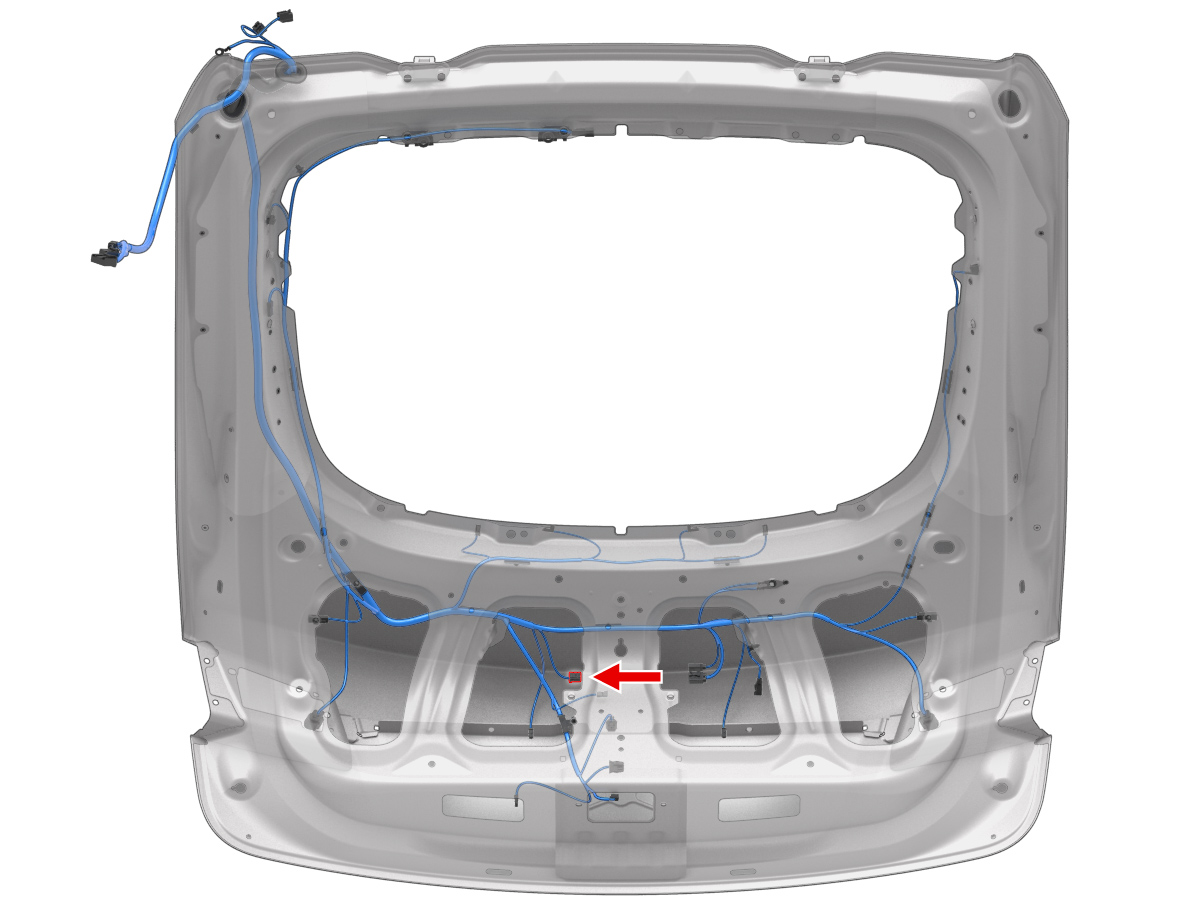

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2-1703930-10.50x0.40FBU0.35X922F4
2unused
3unused
4AMP2-1703930-10.50x0.40FBK0.35
5unused
6unused
7AMP2-1703930-10.50x0.40FGY0.35X922F2
8unused
9AMP2-1703930-10.50x0.40FWH0.35X922F3
10unused
