X458

Tesla Part Number

1614951-00-A

Connector

HIROSE GT25-8DS-HU/R

Color

BK

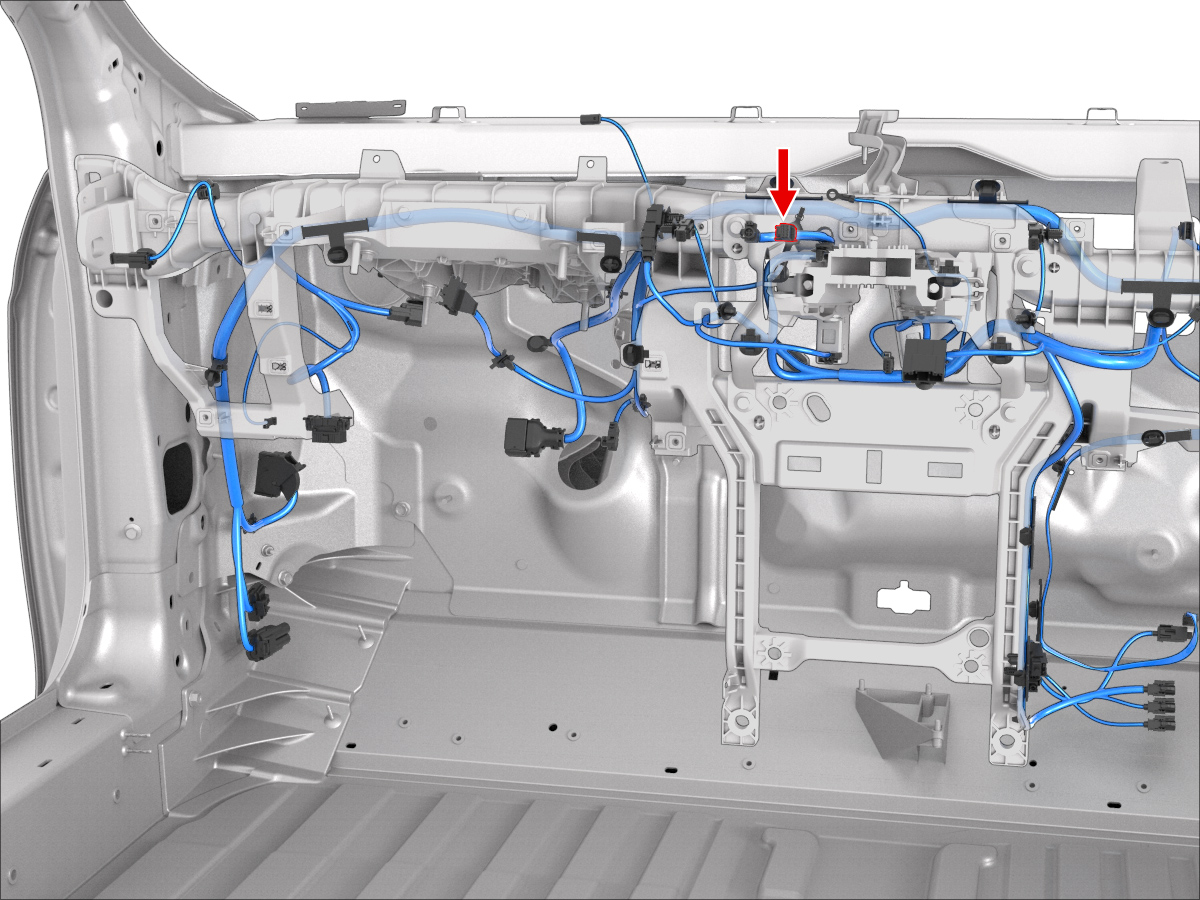

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	HIROSE	GT25H-2024SCF	0.64F	BU	0.35			X456	4
2	HIROSE	GT25H-2024SCF	0.64F	VT	0.35			X456	3
3	HIROSE	GT25H-2024SCF	0.64F	GY	0.35			X456	2
4	HIROSE	GT25H-2024SCF	0.64F	YE	0.35			X456	1
5	HIROSE	GT25H-2024SCF	0.64F	WH	0.35			X456	8
6	HIROSE	GT25H-2024SCF	0.64F	GN	0.35			X456	7
7	HIROSE	GT25H-2024SCF	0.64F	BN	0.35			X456	6
8	HIROSE	GT25H-2024SCF	0.64F	GN	0.35			X456	5
