X573

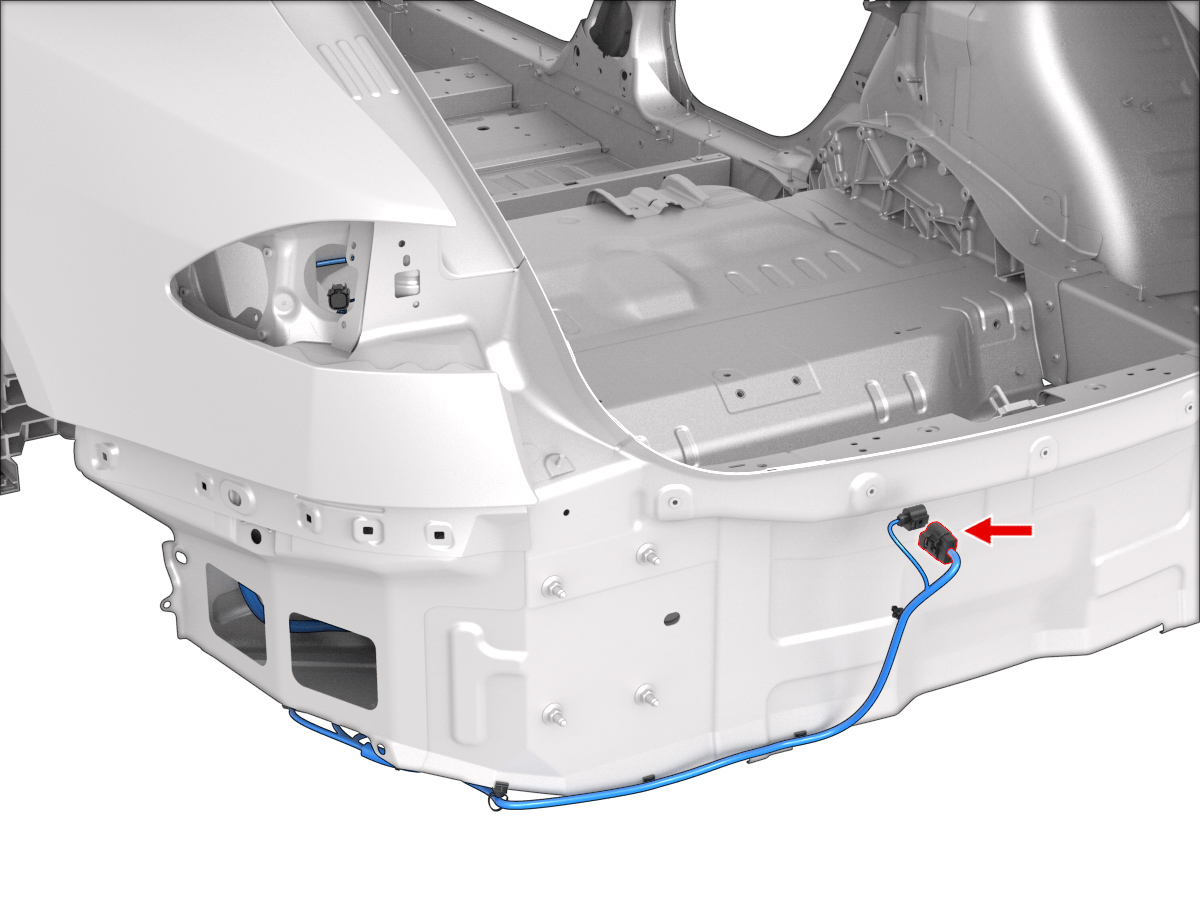

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0468 | 4.8x0.8FS | BK | 3.00 | SUMITOMO | 7165-0348 | G720 | 1 |
| 2 | SUMITOMO | 8100-0466 | 4.8x0.8FS | GN | 0.50 | SUMITOMO | 7165-0346 | X031 | 6 |
| 3 | SUMITOMO | 8100-0468 | 4.8x0.8FS | RD | 3.00 | SUMITOMO | 7165-0348 | X030B | 11 |
