X574

Tesla Part Number

1088340-00-A

Connector

SUMITOMO 6189-7410

Color

BK

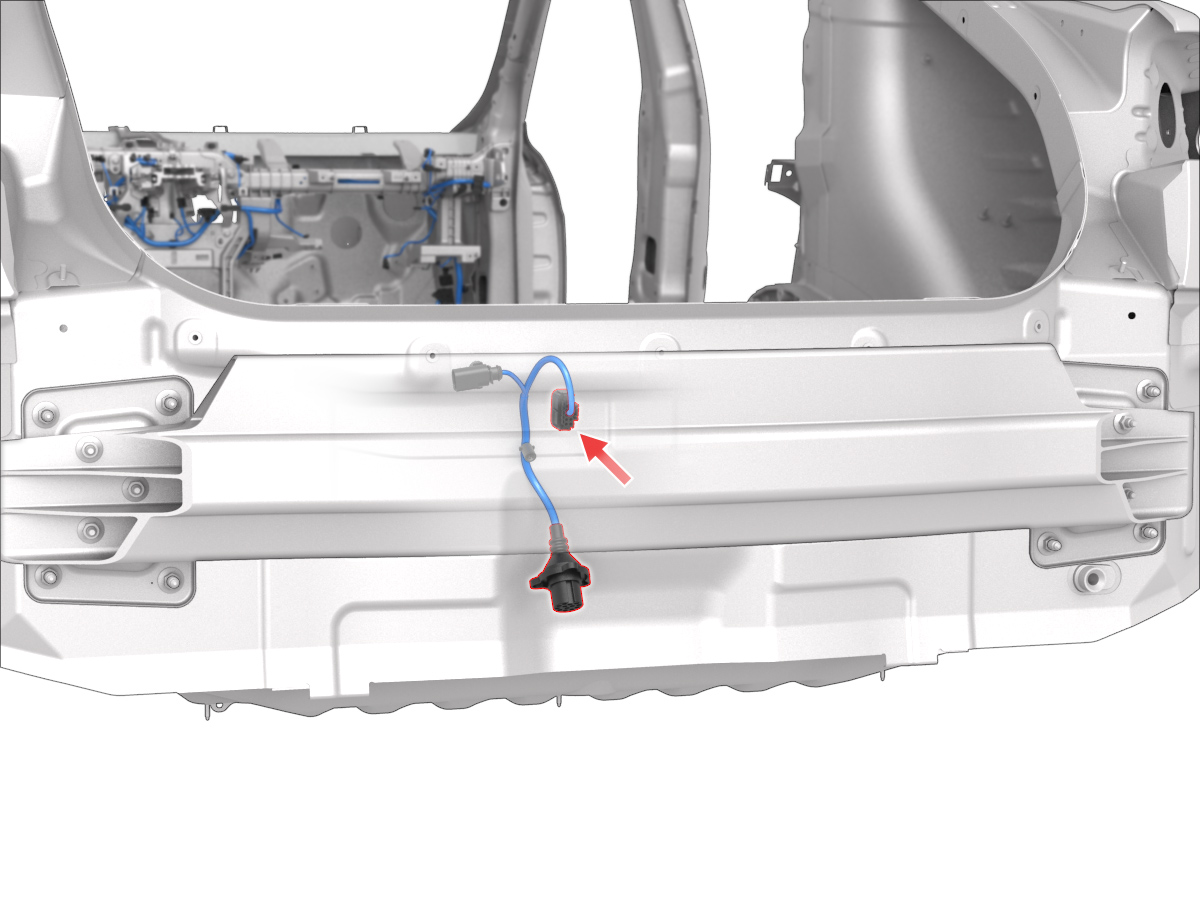

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0492	1.5x0.64FS	WH	2.00	SUMITOMO	7165-1566
2	SUMITOMO	8240-0491	1.5x0.64FS	VT	0.75	SUMITOMO	7165-1564	X251	6
3	unused
4	SUMITOMO	8240-0491	1.5x0.64FS	GY	0.75	SUMITOMO	7165-1564	X250	A
5	SUMITOMO	8240-0491	1.5x0.64FS	GN	0.75	SUMITOMO	7165-1564	X250	D
6	SUMITOMO	8240-0492	1.5x0.64FS	WH	2.00	SUMITOMO	7165-1566
7	SUMITOMO	8240-0492	1.5x0.64FS	WH	2.00	SUMITOMO	7165-1566
8	SUMITOMO	8240-0491	1.5x0.64FS	BU	0.75	SUMITOMO	7165-1564	X251	7
9	SUMITOMO	8240-0491	1.5x0.64FS	BN	0.75	SUMITOMO	7165-1564	X250	F
10	SUMITOMO	8240-0491	1.5x0.64FS	YE	0.75	SUMITOMO	7165-1564	X250	G
11	SUMITOMO	8240-0491	1.5x0.64FS	VT	0.75	SUMITOMO	7165-1564	X251	2
12	SUMITOMO	8240-0492	1.5x0.64FS	WH	2.00	SUMITOMO	7165-1566
