X585

Tesla Part Number

1092471-00-A

Connector

SUMITOMO 6189-7077

Color

GY

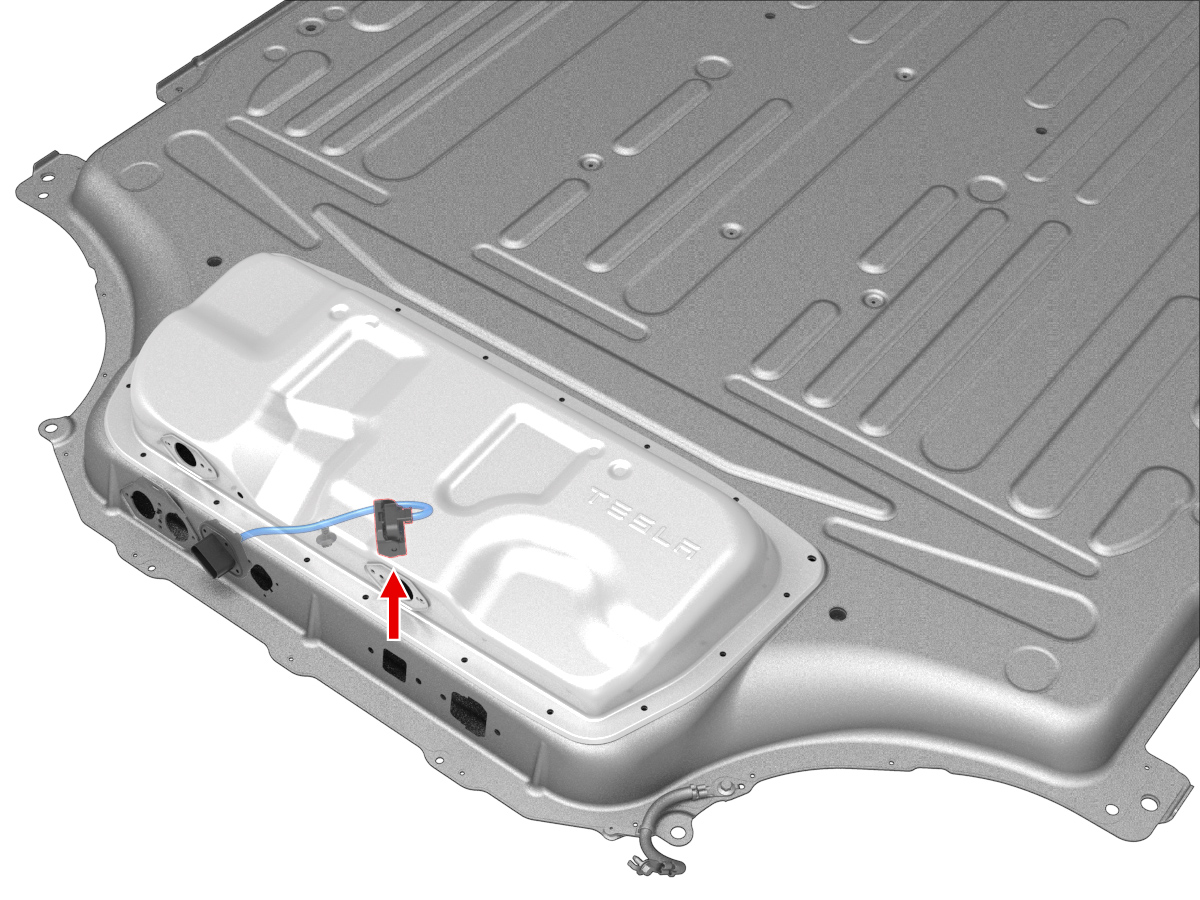

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0287	0.64x0.64FS	GY	0.50	SUMITOMO	7165-1198	X990M	2
2	unused
3	SUMITOMO	8240-0287	0.64x0.64FS	YE	0.50	SUMITOMO	7165-1198	X990M	12
4	unused
5	unused
6	SUMITOMO	8100-3455	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X990M	5
7	SUMITOMO	8100-3455	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X990M	6
8	SUMITOMO	8100-0460	2.3x0.64FS	RD	0.35	SUMITOMO	7165-0385	X990M	4
9	SUMITOMO	8100-0461	2.3x0.64FS	BK	0.75	SUMITOMO	7165-0342	X990M	10
10	SUMITOMO	8100-3455	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X990M	7
11	SUMITOMO	8100-3455	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X990M	8
12	SUMITOMO	8240-0287	0.64x0.64FS	GN	0.50	SUMITOMO	7165-1198	X990M	1
13	SUMITOMO	8100-3455	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X990M	3
14	unused
15	SUMITOMO	8100-3455	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X990M	15
16	SUMITOMO	8100-3455	0.64x0.64FS	BN/WH	0.35	SUMITOMO	7165-1312	X990M	16
17	unused
18	SUMITOMO	8100-0461	2.3x0.64FS	VT	1.00	SUMITOMO	7165-0343	X990M	11
19	unused
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	unused
