X930F_1

Tesla Part Number

1005315-10-A

Connector

MOLEX 33472-1207

Color

GY

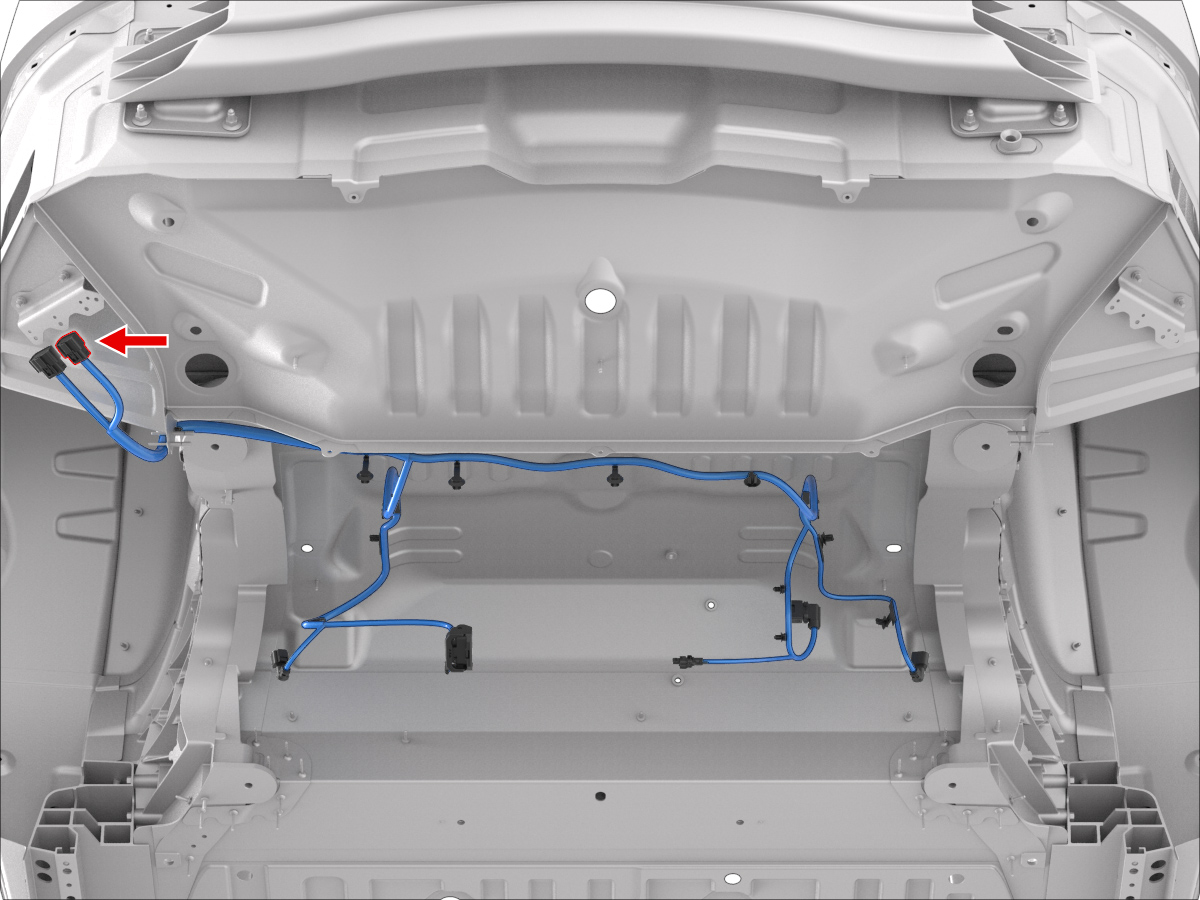

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				WH	1.00	TESLA	MAT-120-240	X322A	1
2				BU	1.00	TESLA	MAT-120-240	X319A	1
3	unused
4	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X320A	12
5	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X320A	2
6				BK	1.00	TESLA	MAT-120-240	X322A	3
7	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X320A	3
8	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X320A	22
9	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X328A	23
10	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X328A	4
11				BK	1.00	TESLA	MAT-120-240	X318A	3
12				BK	1.00	TESLA	MAT-120-240	X319A	3
