X940M

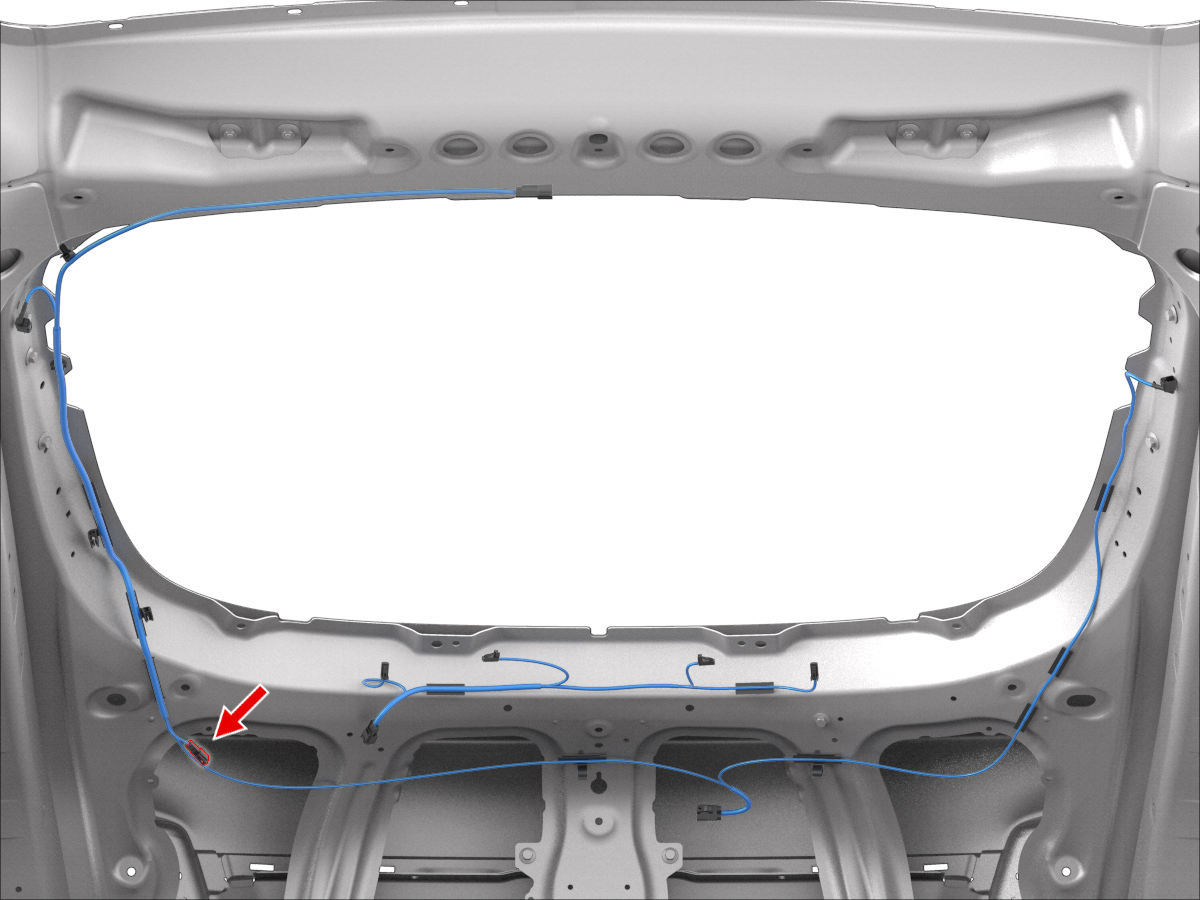

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963716-1 | 0.63x0.63M | VT | 0.50 | X269 | A | ||
| 2 | AMP | 5-963716-1 | 0.63x0.63M | BK | 0.50 | X269 | B |
