X951M

Tesla Part Number

1048098-00-A

Connector

YAZAKI 7286-1918

Color

WH

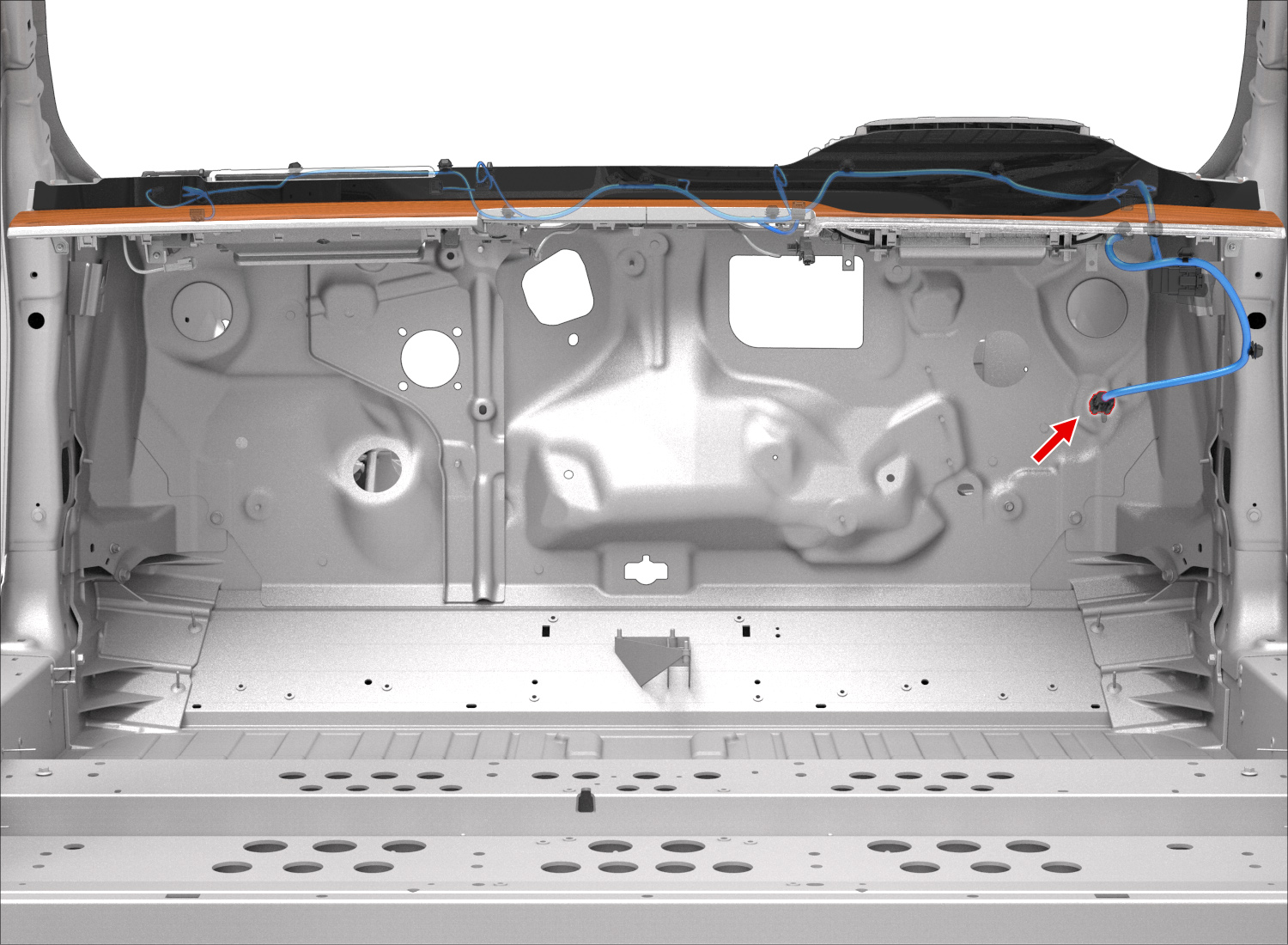

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4924	1.5x0.6M	GN	0.75			X410	1
2	unused
3	unused
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X094	3
5	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X094	7
6	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X098	3
7	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X098	7
8	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X098	6
9	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X094	6
10	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X094	5
11	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X098	5
12	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35
13	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35
14	SUMITOMO	8230-4924	1.5x0.6M	GY	0.75			X416	1
15	SUMITOMO	8230-4924	1.5x0.6M	WH	0.75			X410	2
16	SUMITOMO	8100-3623	0.64x0.64M	YE	0.50			X417	1
17	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X417	2
18	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X093	3
19	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X093	7
20	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X097	3
21	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X097	7
22	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X093	5
23	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X097	5
24	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
25	unused
26	SUMITOMO	8230-4924	1.5x0.6M	RD	0.75			X416	2
