X964M

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

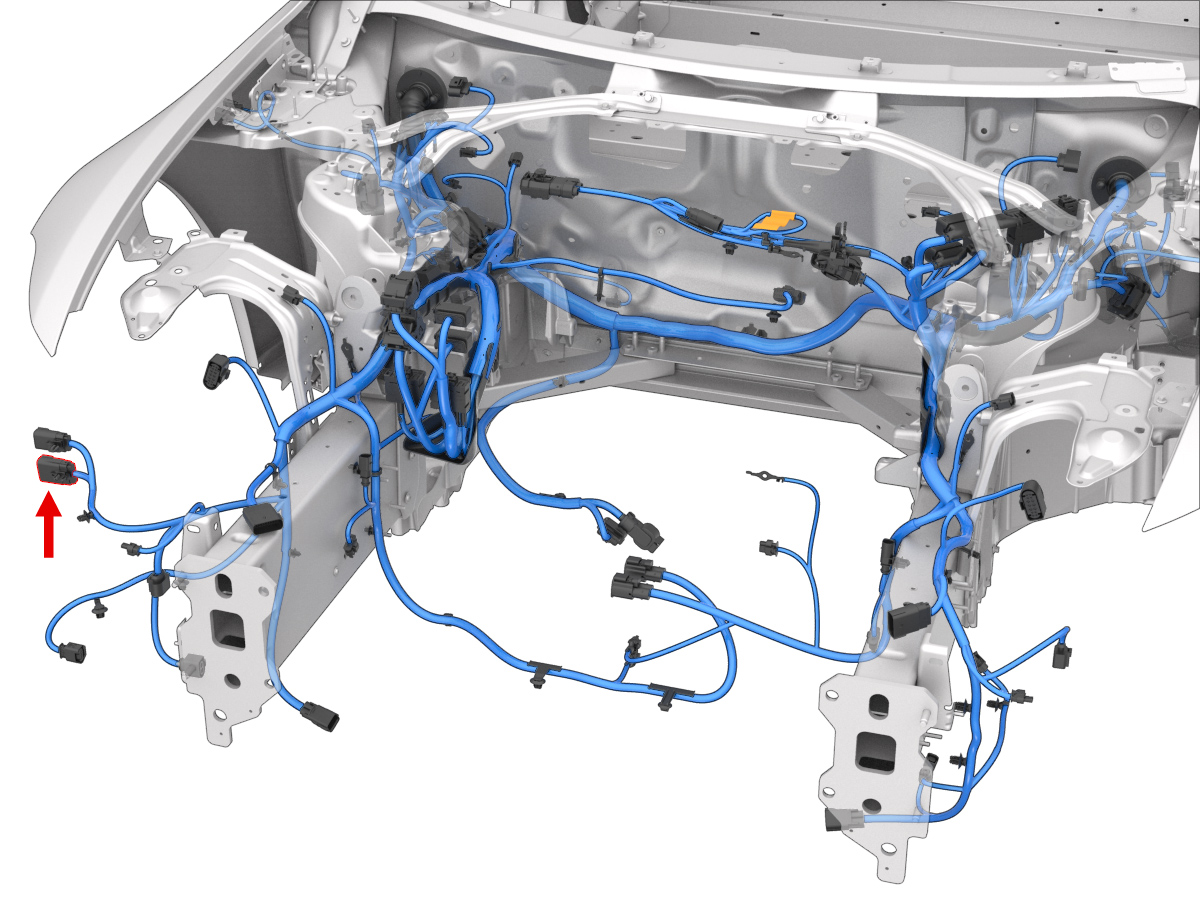

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	YE	0.50	TESLA	MAT-120-240	X025	D4
2	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X025	C5
3	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X010	E3
4	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X010	D4
5	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X978M	2
6	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X978M	3
7	MOLEX	33000-0002	1.5x0.8M	RD	1.00	TESLA	MAT-120-240	X010	A3
8	MOLEX	33000-0002	1.5x0.8M	BU	1.00	TESLA	MAT-120-240	X010	A5
9	unused
10	unused
11	unused
12	unused
13	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X978M	16
14	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X978M	17
15	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X011	50
16	MOLEX	33000-0001	1.5x0.8M	BK	1.50	TESLA	MAT-120-240	G510	3
