X983F

Tesla Part Number

1486226-00-A

Connector

DELPHI 33239497

Color

BK

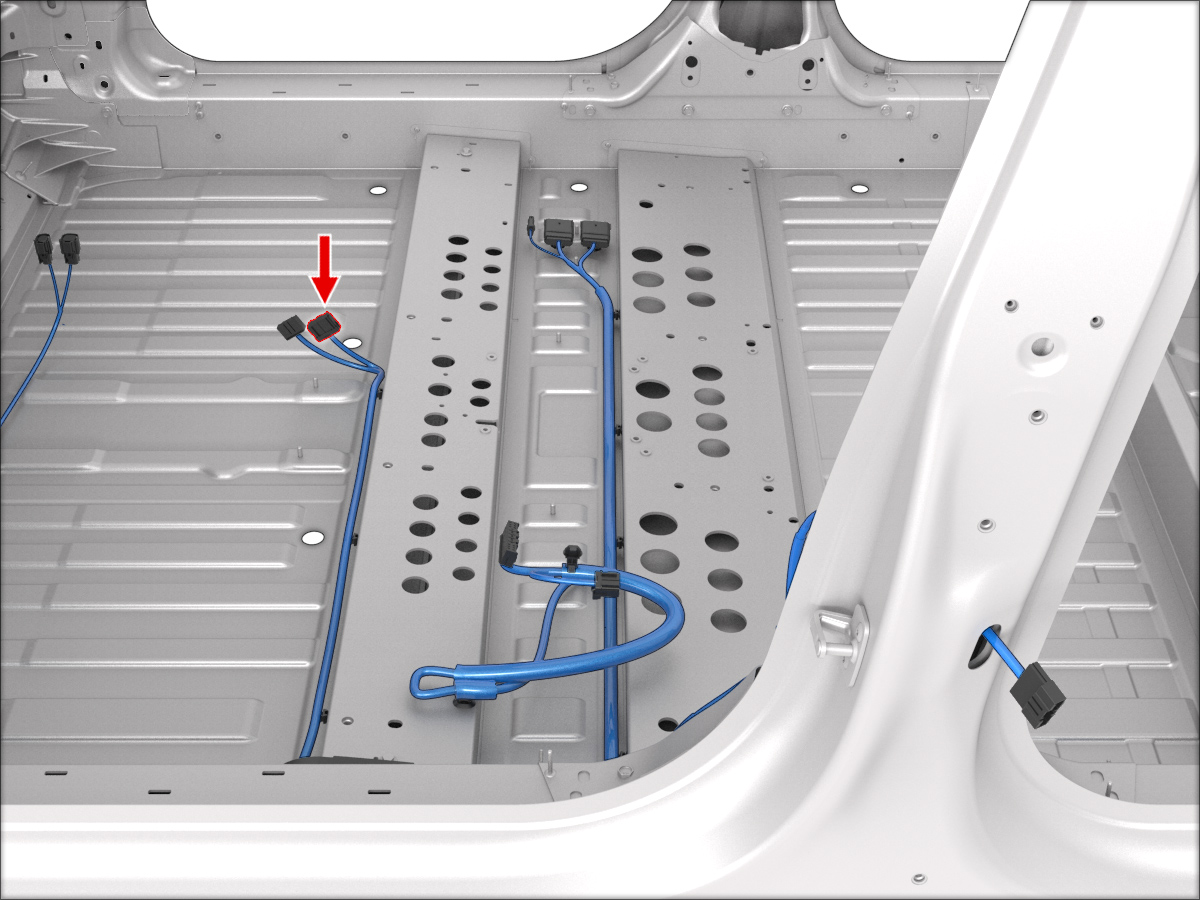

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	VT	0.35			X032	18
2	DELPHI	35410019	1.2x0.6F	GN	0.35			X032	19
3	DELPHI	35410019	1.2x0.6F	BU	0.35			X032	22
4	DELPHI	35410019	1.2x0.6F	YE	0.35			X032	25
5	DELPHI	35410019	1.2x0.6F	RD	0.35			X039	2
6	DELPHI	35410019	1.2x0.6F	GY	0.35			X032	20
7	DELPHI	35410019	1.2x0.6F	VT	0.35			X038A	19
8	DELPHI	35410019	1.2x0.6F	BU	0.35			X038B	3
9	DELPHI	35072403	1.2x0.6F	BK	0.50			G660	1
10	DELPHI	35410019	1.2x0.6F	WH	0.35			X030A	21
11	DELPHI	35410019	1.2x0.6F	GY	0.35			X038A	5
12	DELPHI	35410019	1.2x0.6F	WH	0.35			X038A	18
13	DELPHI	35410019	1.2x0.6F	VT	0.35			X032	24
14	DELPHI	35410019	1.2x0.6F	YE	0.35			X032	21
15	DELPHI	35410019	1.2x0.6F	BN	0.35			X039	4
16	DELPHI	35410019	1.2x0.6F	BU	0.35			X032	26
17	DELPHI	35410019	1.2x0.6F	WH	0.35			X032	23
18	DELPHI	35410019	1.2x0.6F	RD	0.35			X030A	20
19	DELPHI	35410019	1.2x0.6F	GN	0.35			X038A	26
20	DELPHI	35072406	1.2x0.6F	BK	1.50			G660	1
