X987M

Tesla Part Number

1055685-01-A

Connector

MOLEX 33482-2102

Color

GY

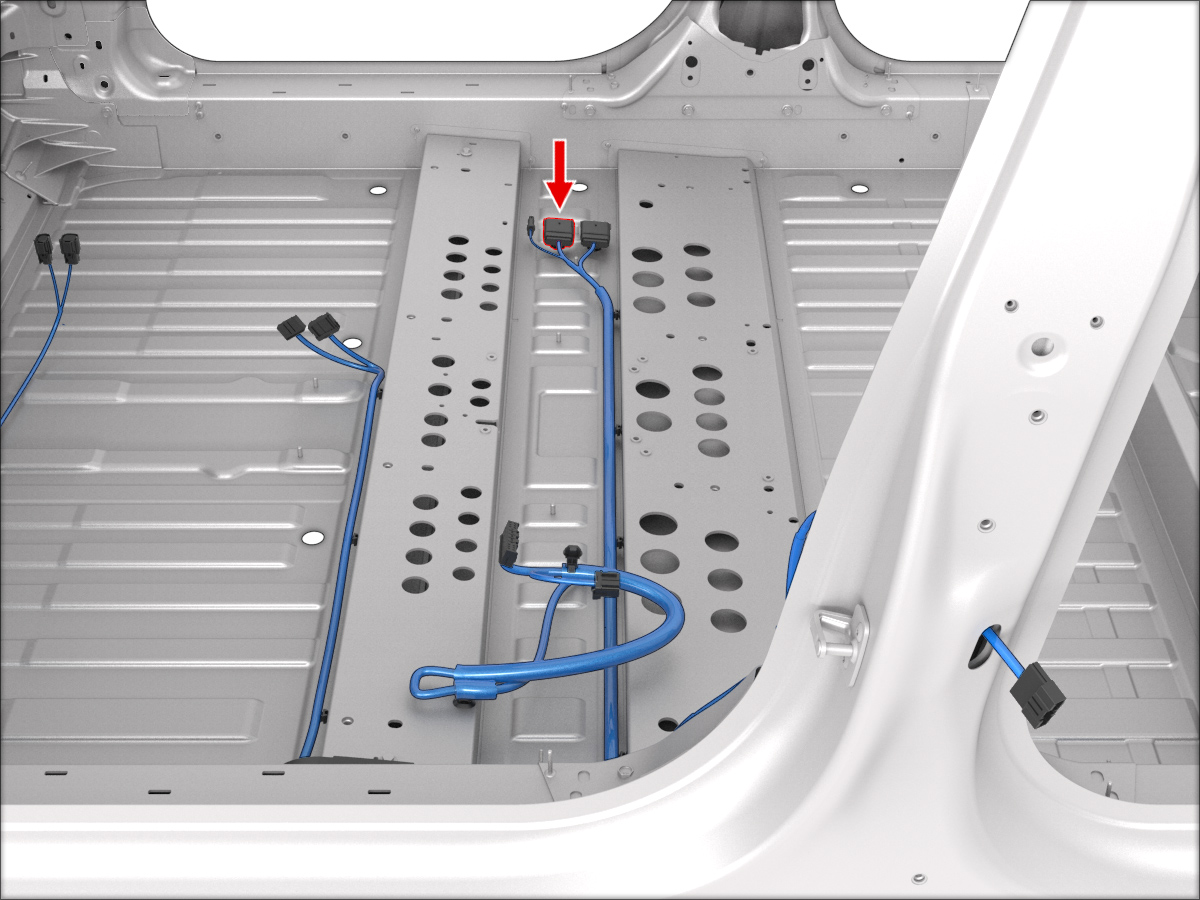

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X201	1
2	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X201	2
3	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X200	34
4	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X200	33
5	MOLEX	33000-0004	1.5x0.8M	YE/WH	0.35	TESLA	MAT-120-240	X030A	15
6	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X030A	3
7	unused
8	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X932M	5
9	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X932M	6
10	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X932M	7
11	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X201	38
12	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X201	37
13	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X201	16
14	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X201	15
15	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X200	40
16	unused
17	unused
18	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X932M	15
19	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X932M	14
20	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X932M	13
