X988M

Tesla Part Number

1055685-00-A

Connector

MOLEX 33482-2101

Color

BK

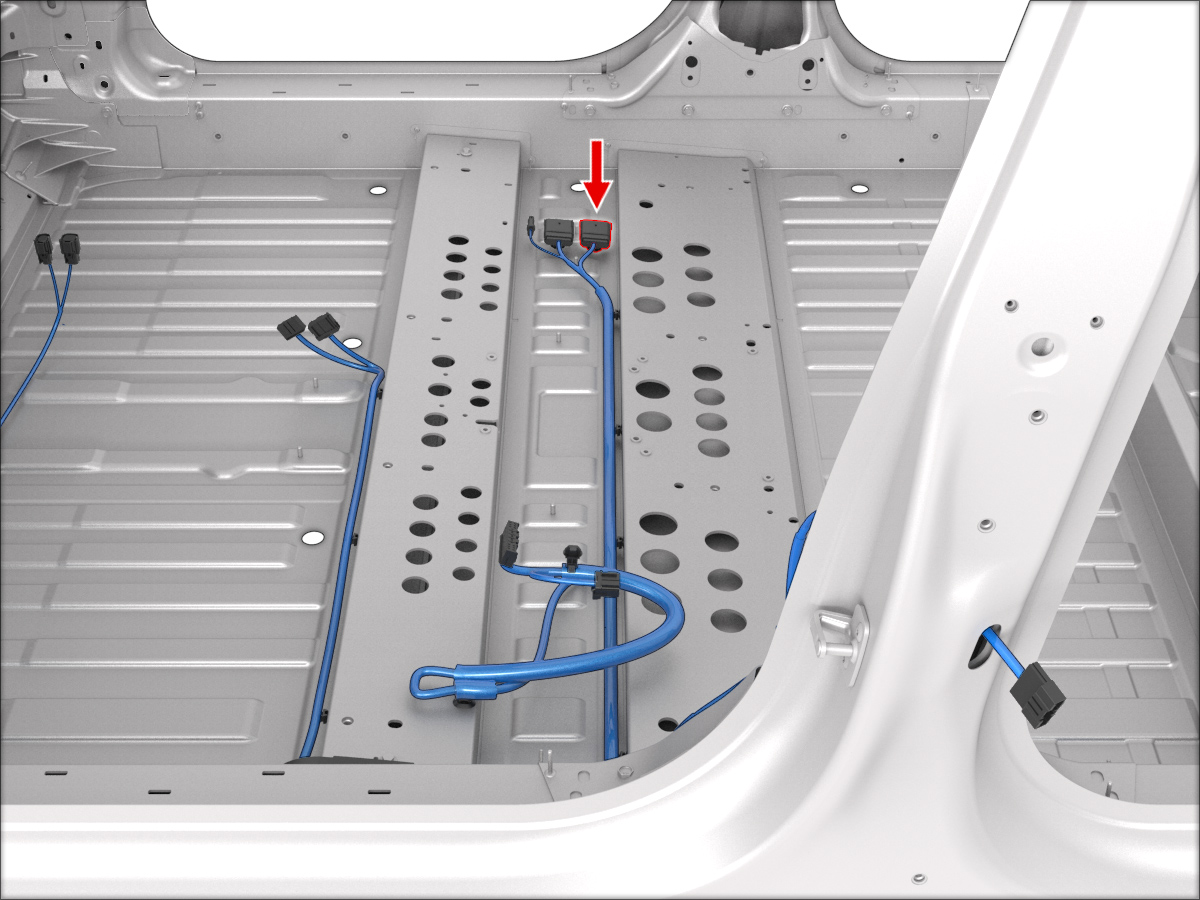

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X478	4
2	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X478	3
3	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X982F	5
4	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X982F	6
5	unused
6	unused
7	unused
8	unused
9	unused
10	unused
11	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X200	1
12	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X200	2
13	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X200	38
14	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X200	39
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
