X993M

Tesla Part Number

1051422-00-A

Connector

MOLEX 34986-1601

Color

BK

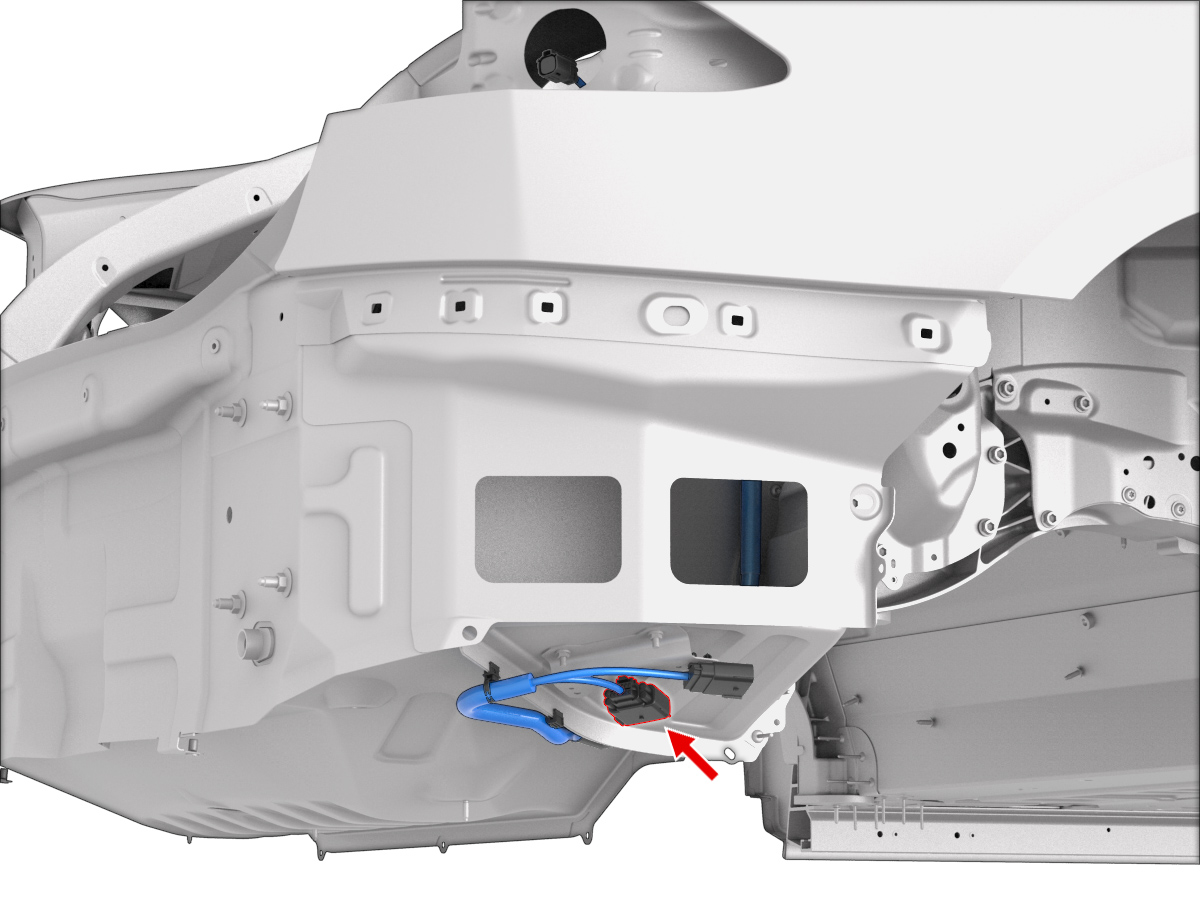

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1326031-5	2.8x0.8MS	YE	2.00	YAZAKI	7158-3113-40	X050B	4
2	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	X977F	1
3	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X977F	11
4	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X977F	2
5	unused
6	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X936M	17
7	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X936M	16
8	unused
9	AMP	1326031-5	2.8x0.8MS	WH	2.00	YAZAKI	7158-3113-40	X050B	3
10	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X978F	9
11	MOLEX	33000-0004	1.5x0.8M	YE	0.50	TESLA	MAT-120-240	X978F	10
12	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X977F	12
13	unused
14	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X976M	5
15	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X976M	4
16	unused
