G500

Tesla Part Number

1616205-00-B

Connector

KSE K21F00511

Color

BK

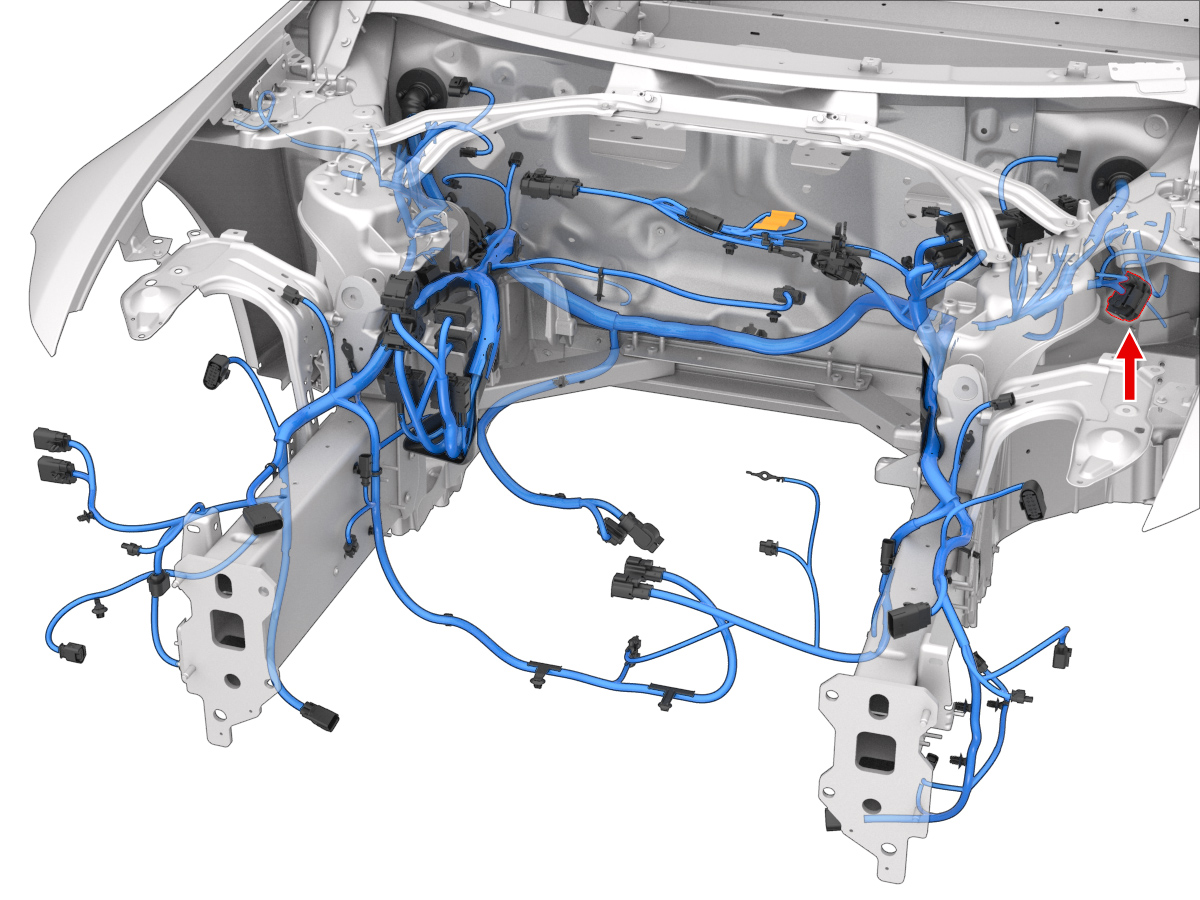

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	10780234	9.5FS	BK	8.00	DELPHI	15327788	G501	1
2	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X484	2
3	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X485	2
4	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X561	A
5	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X261	3
6	DELPHI	33351050	6.35F	BK	4	KSE	K60F00601	X106	13
7	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X276	2
8	unused
9	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X960M	3
10	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X560	1
11	DELPHI	33350989	2.8x0.8F	BK	2.50	QSR	X-1039-003	X562	3
12	DELPHI	33350989	2.8x0.8F	BK	2.00	QSR	X-1039-004	X106	38
13	DELPHI	33350989	2.8x0.8F	BK	1.50	QSR	X-1039-004	X995F	17
14	unused
15	DELPHI	33351050	6.35F	BK	4.00	KSE	K60F00601	X532	1
