X011

Tesla Part Number

1607109-12-A

Connector

MOLEX 34870-2003

Color

BN

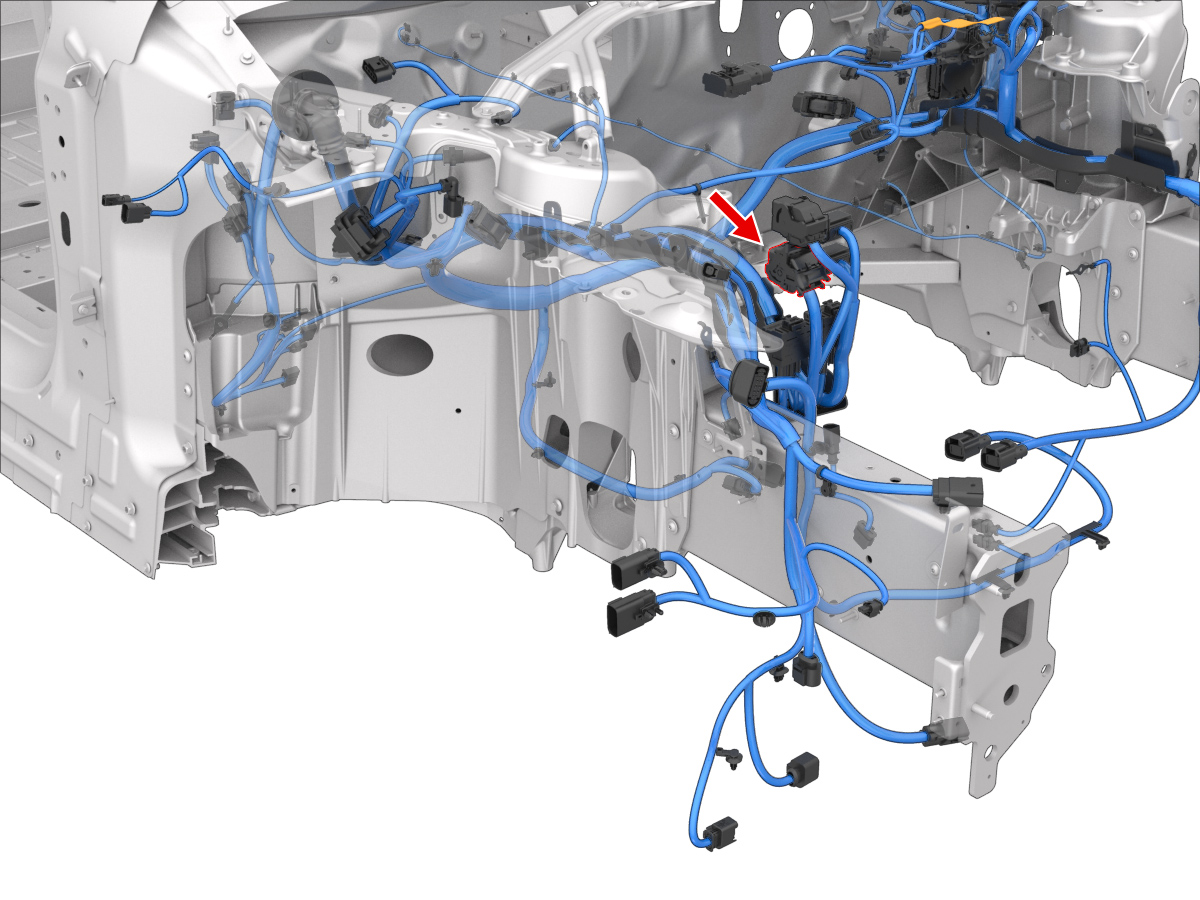

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	MOLEX	34808-1042	2.8x0.8F	YE	2.00	MOLEX	64325-1345	X452	10
4	MOLEX	34808-1042	2.8x0.8F	BU	2.00	MOLEX	64325-1345	X177	11
5	unused
6	unused
7	unused
8	unused
9	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X057	12
10	MOLEX	34803-3411	0.64x0.64F	YE/WH	0.35	TESLA	MAT-120-190	X057	13
11	unused
12	unused
13	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190	X966M	18
14	unused
15	MOLEX	34803-3411	0.64x0.64F	WH	0.35	TESLA	MAT-120-190	X025	D3
16	unused
17	unused
18	unused
19	MOLEX	34803-3412	0.64x0.64F	BN	0.50	TESLA	MAT-120-190	X115	A
20	unused
21	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X176	22
22	MOLEX	34803-3411	0.64x0.64F	YE/WH	0.35	TESLA	MAT-120-190	X176	21
23	unused
24	MOLEX	34803-3412	0.64x0.64F	BU	0.50	TESLA	MAT-120-190	X562	1
25	unused
26	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190	X520	2
27	unused
28	MOLEX	34803-3412	0.64x0.64F	RD	0.50	TESLA	MAT-120-190	X277	1
29	unused
30	unused
31	unused
32	unused
33	unused
34	unused
35	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X966M	7
36	MOLEX	34803-3411	0.64x0.64F	GN	0.35	TESLA	MAT-120-190	X262	2
37	unused
38	unused
39	unused
40	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X520	1
41	unused
42	unused
43	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190
44	MOLEX	34803-3411	0.64x0.64F	BN/WH	0.35	TESLA	MAT-120-190
45	unused
46	unused
47	MOLEX	34803-3411	0.64x0.64F	WH	0.35	TESLA	MAT-120-190	X025	F3
48	MOLEX	34803-3411	0.64x0.64F	BU	0.35	TESLA	MAT-120-190	X025	E3
49	MOLEX	34803-3412	0.64x0.64F	GY	0.50	TESLA	MAT-120-190	X115	B
50	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X964M	5
51	unused
52	unused
53	unused
