X026

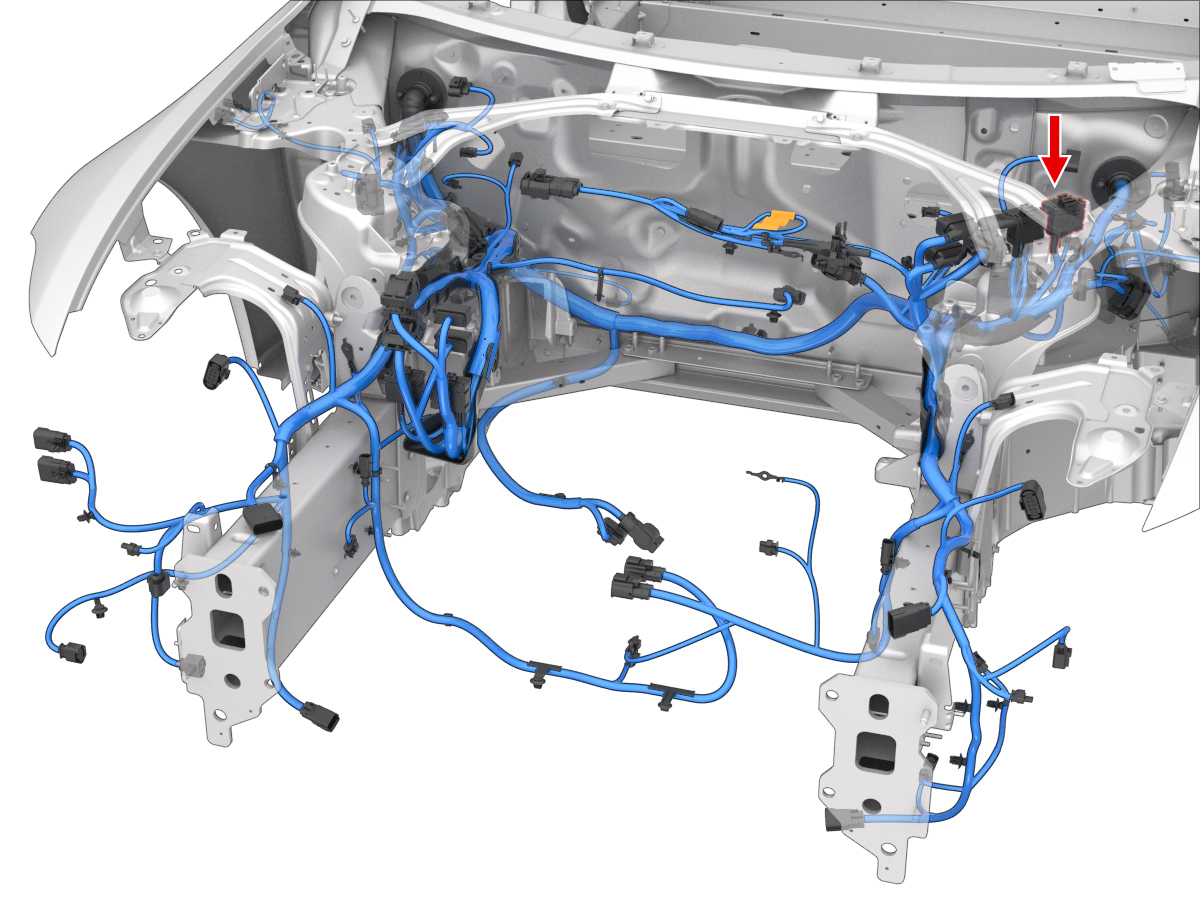

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KSE | K80F90301 | 6.3x0.8F | RD/BK | 16 | PIA | PIA-SEAL | X168 | 1 |
| 2 | KSE | K80F90301 | 6.3x0.8F | RD | 4 | PIA | PIA-SEAL | X956M | 2 |
| 3 | KSE | K80F90401 | 14.5x0.8F | RD | 25 | KSE | K60F00902 |
