X030A

Tesla Part Number

1506907-02-A

Connector

SUMITOMO 6098-8950

Color

WH

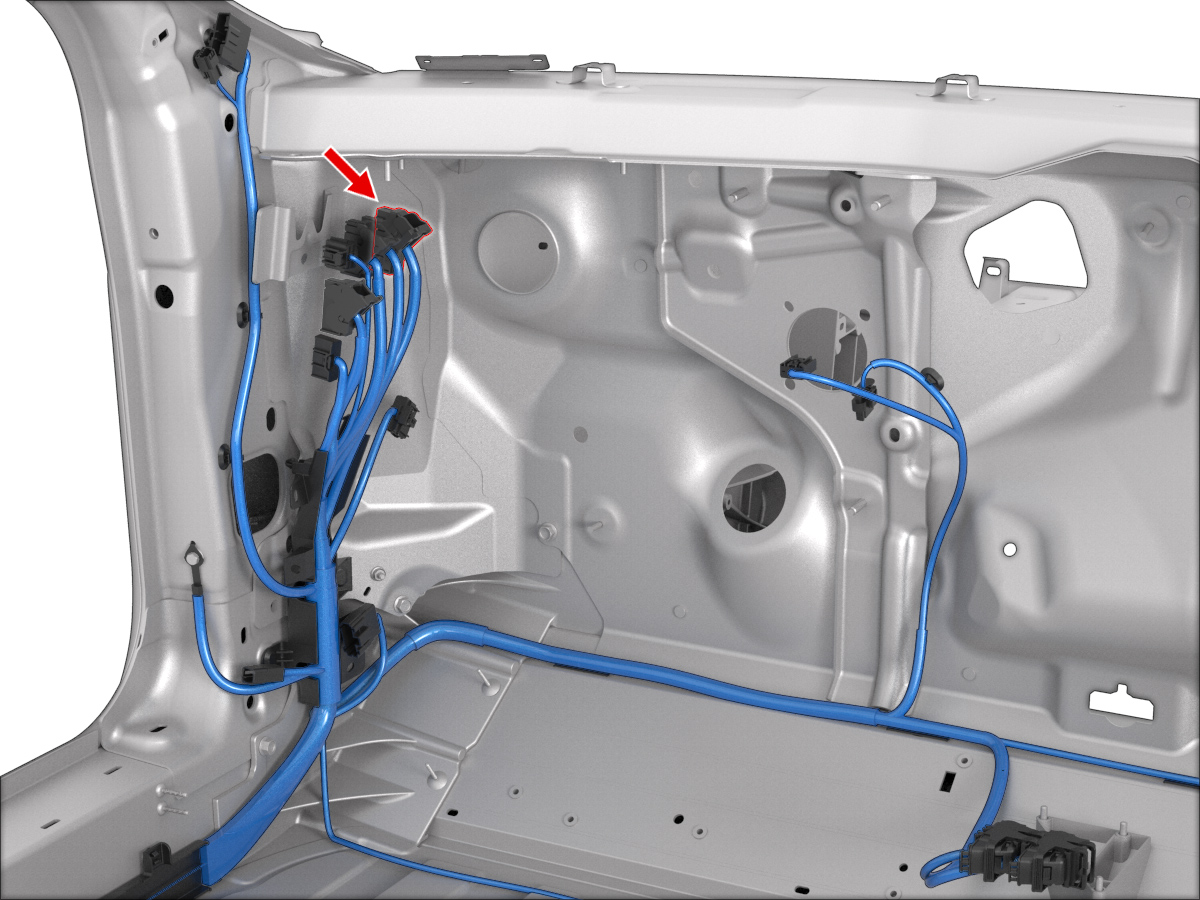

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	71
2	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X982F	15
3	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X987M	6
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X252	6
6	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X252	5
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X252	3
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X982F	8
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X201	7
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	6
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X201	72
14	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X982F	14
15	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X987M	5
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X252	4
18	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X252	1
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X252	2
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X983F	18
21	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X983F	10
22	unused
23	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	8
24	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	5
25	unused
26	unused
27	unused
28	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X975F	16
29	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X975F	8
30	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X945M	14
31	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X945M	26
32	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X049	10
