X031

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

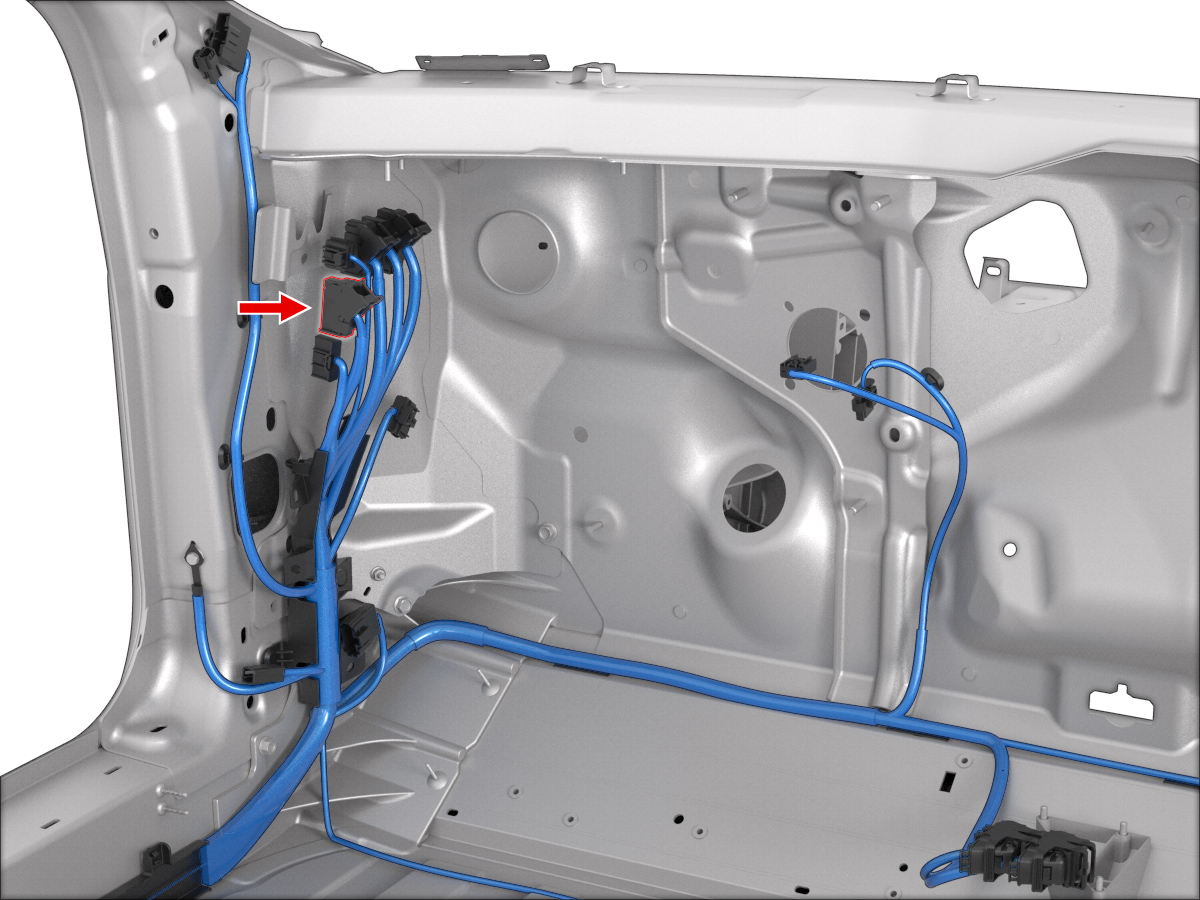

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X982F	18
2	unused
3	unused
4	unused
5	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X945M	2
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X255	3
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X935M	15
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X968M	2
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X968M	19
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X968M	5
11	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X200	50
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X200	49
13	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200	47
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X200	48
15	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X982F	1
16	unused
17	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X982F	10
18	unused
19	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X982F	13
20	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X968M	24
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X982F	12
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935M	5
23	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X968M	17
24	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X935M	13
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X968M	16
26	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X968M	18
27	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X968M	3
28	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X968M	4
29	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X201	46
30	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X200	45
31	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X270	2
32	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X270	3
33	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X270	1
34	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X945M	7
35	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X945M	4
36	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X945M	3
37	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X930M	5
38	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X930M	4
39	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X932M	12
40	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X932M	11
41	unused
42	unused
43	unused
44	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	45
45	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X200	46
