X032

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

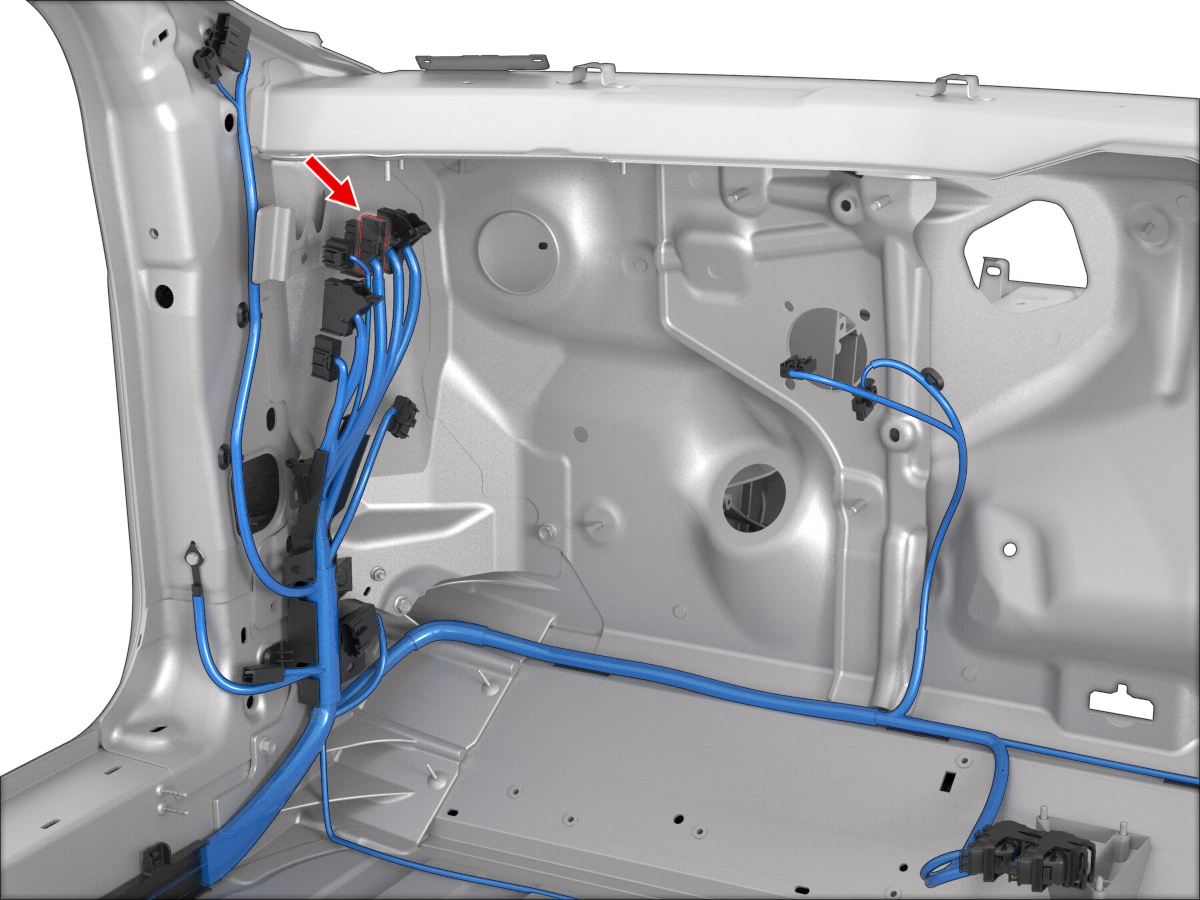

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X570	3
3	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			X986M	13
4	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X986M	14
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X478	2
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X107	1
8	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X945M	18
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X945M	6
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X945M	8
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X362	6
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X945M	19
14	unused
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200	51
17	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X200	52
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X983F	1
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X983F	2
20	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X983F	6
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X983F	14
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X983F	3
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X983F	17
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X983F	13
25	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X983F	4
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X983F	16
27	unused
28	unused
29	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X478	1
30	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X362	7
31	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X947M	6
32	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X982F	9
33	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X362	8
34	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X982F	4
35	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X270	4
36	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X290	1
