X038A

Tesla Part Number

1506908-02-A

Connector

SUMITOMO 6098-8953

Color

WH

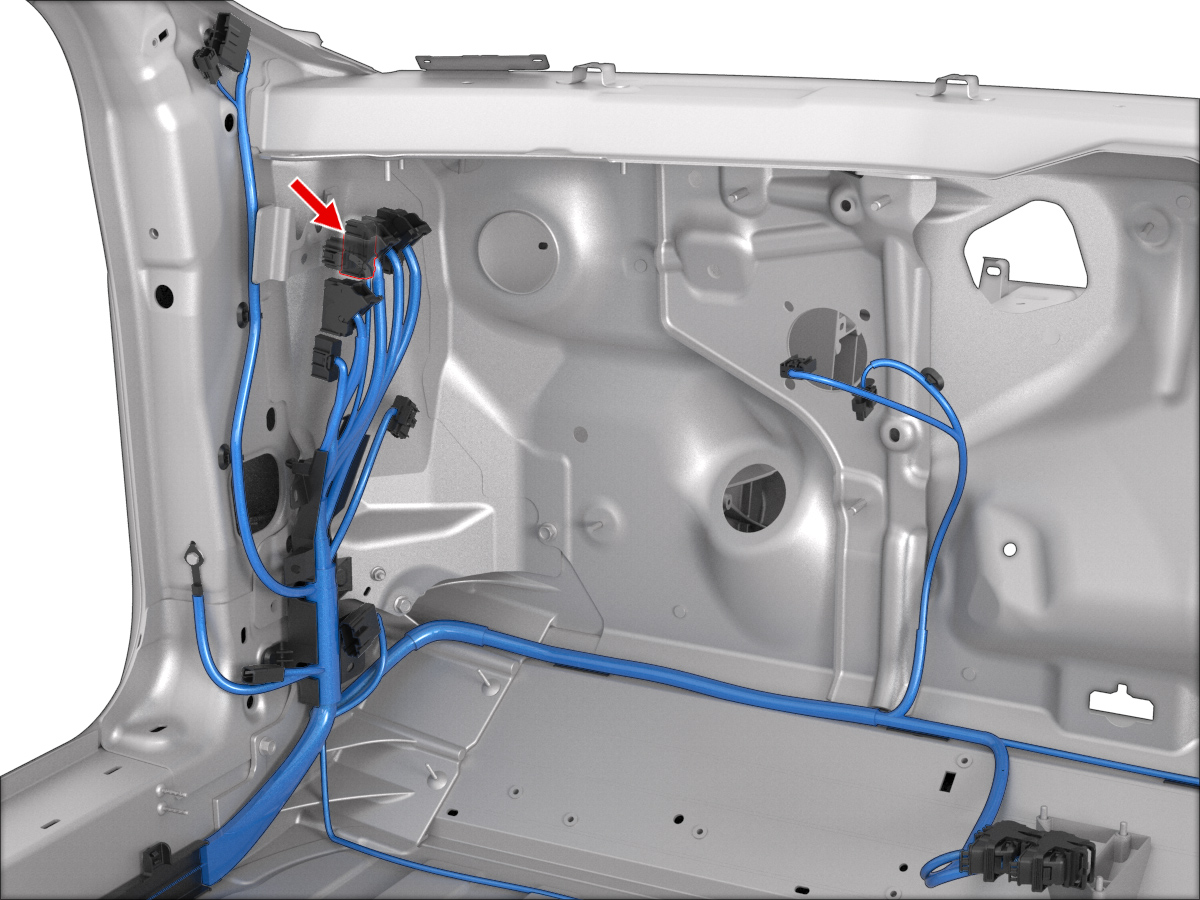

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X1000	9
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X976F	9
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X945M	13
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X983F	11
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X930M	7
7	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X932M	2
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X935M	7
9	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X935M	6
10	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X685	3
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X664	2
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X982F	16
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X945M	5
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X1000	8
16	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X976F	8
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X945M	10
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X983F	12
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X983F	7
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X932M	9
21	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X930M	8
22	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X212	1
23	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X685	2
24	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X685	1
25	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935M	2
26	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X983F	19
27	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X945M	25
28	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X935M	20
29	SUMITOMO	8240-0213	1.5x0.64F	RD	0.75			X935M	12
30	unused
31	SUMITOMO	8240-0214	1.5x0.64F	VT	1.50			X975F	9
32	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X975F	1
33	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X945M	9
34	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X930M	1
35	unused
