X045

Tesla Part Number

1064878-00-A

Connector

DELPHI 13678638

Color

BK

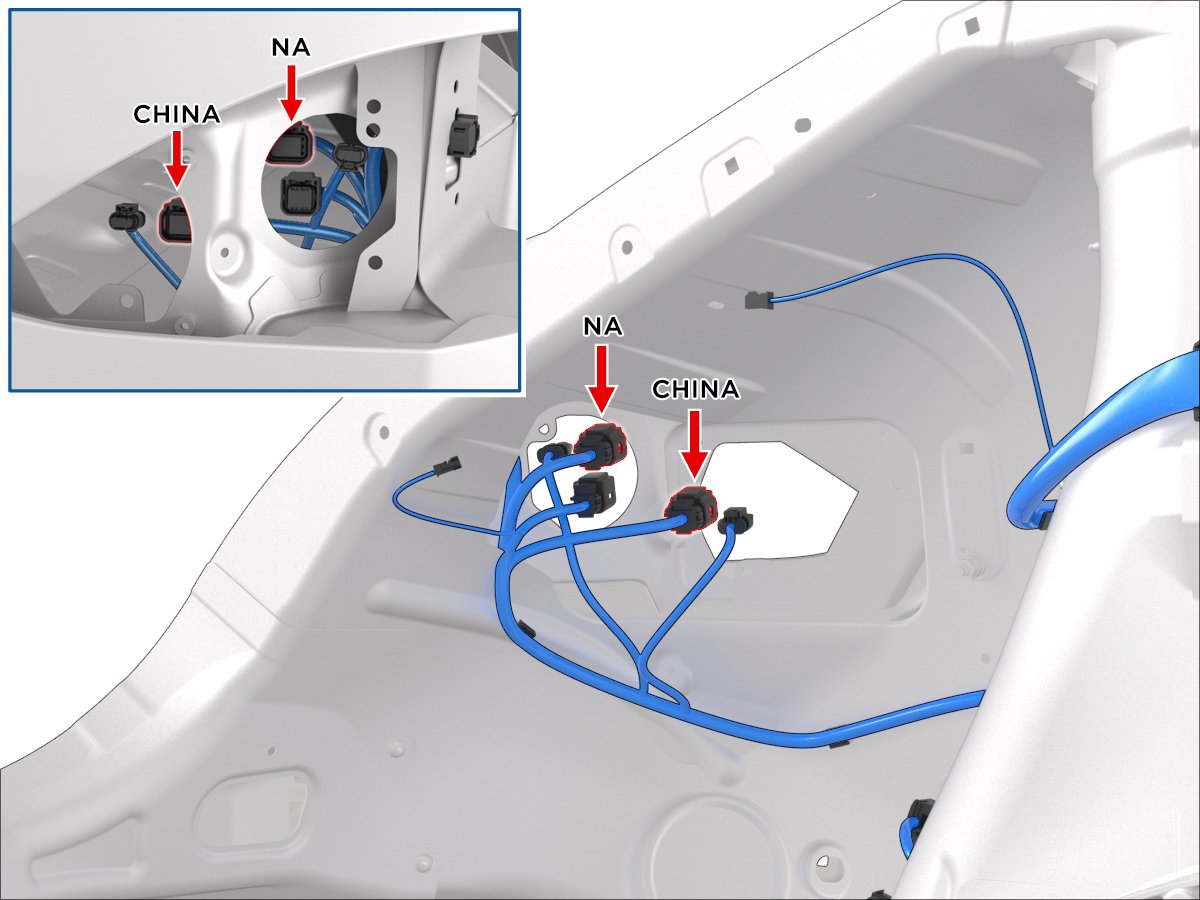

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072403	1.2x0.6F	YE	0.50	TESLA	MAT-140-190	X048	4
2	DELPHI	35072403	1.2x0.6F	RD	0.50	TESLA	MAT-140-190	X048	1
3	unused
4	DELPHI	35072403	1.2x0.6F	YE	0.50	TESLA	MAT-140-190	X048	20
5	unused
6	unused
7	unused
8	DELPHI	35072403	1.2x0.6F	BU	0.50	TESLA	MAT-140-190	X048	13
9	DELPHI	35072403	1.2x0.6F	VT	0.50	TESLA	MAT-140-190	X048	22
10	DELPHI	35072403	1.2x0.6F	BN	0.50	TESLA	MAT-140-190	X048	21
11	DELPHI	35072403	1.2x0.6F	GN	0.50	TESLA	MAT-140-190	X048	5
12	DELPHI	35072403	1.2x0.6F	WH	0.50	TESLA	MAT-140-190	X048	16
