X051

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

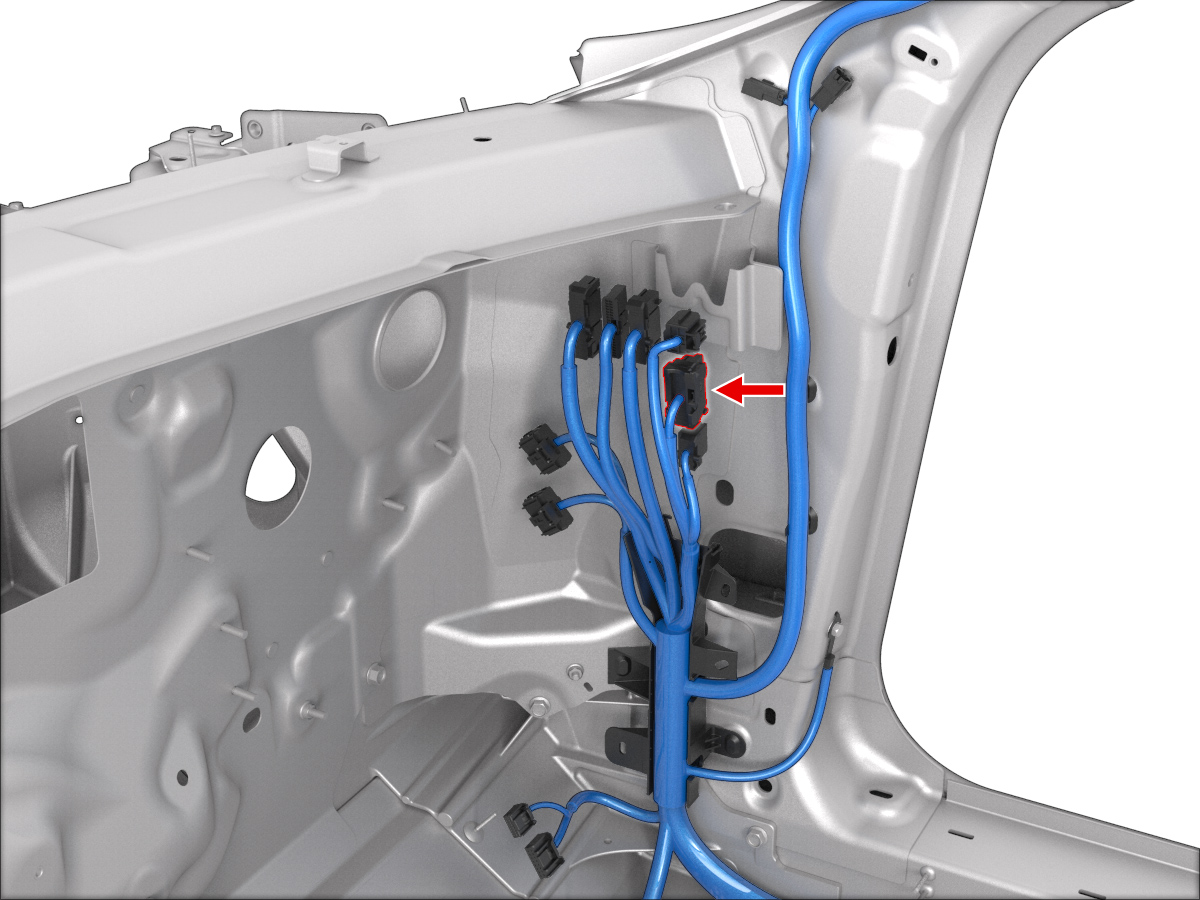

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	SUMITOMO	8240-0214	1.5x0.64F	BN	1.50			X447	2
5	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X447	1
6	unused
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X453	8
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X453	7
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X453	16
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X453	15
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X454	10
14	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X454	9
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
21	unused
22	unused
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X075	1
25	unused
26	unused
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X988F	13
28	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X988F	14
29	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X454	7
30	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X454	8
31	unused
32	unused
33	unused
34	unused
35	unused
36	unused
37	unused
38	unused
39	unused
40	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X988F	7
41	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X481	4
42	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X477	2
43	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X291	1
44	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X921M	4
45	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X921M	11
