X053A

Tesla Part Number

1048099-00-A

Connector

YAZAKI 7287-1918

Color

WH

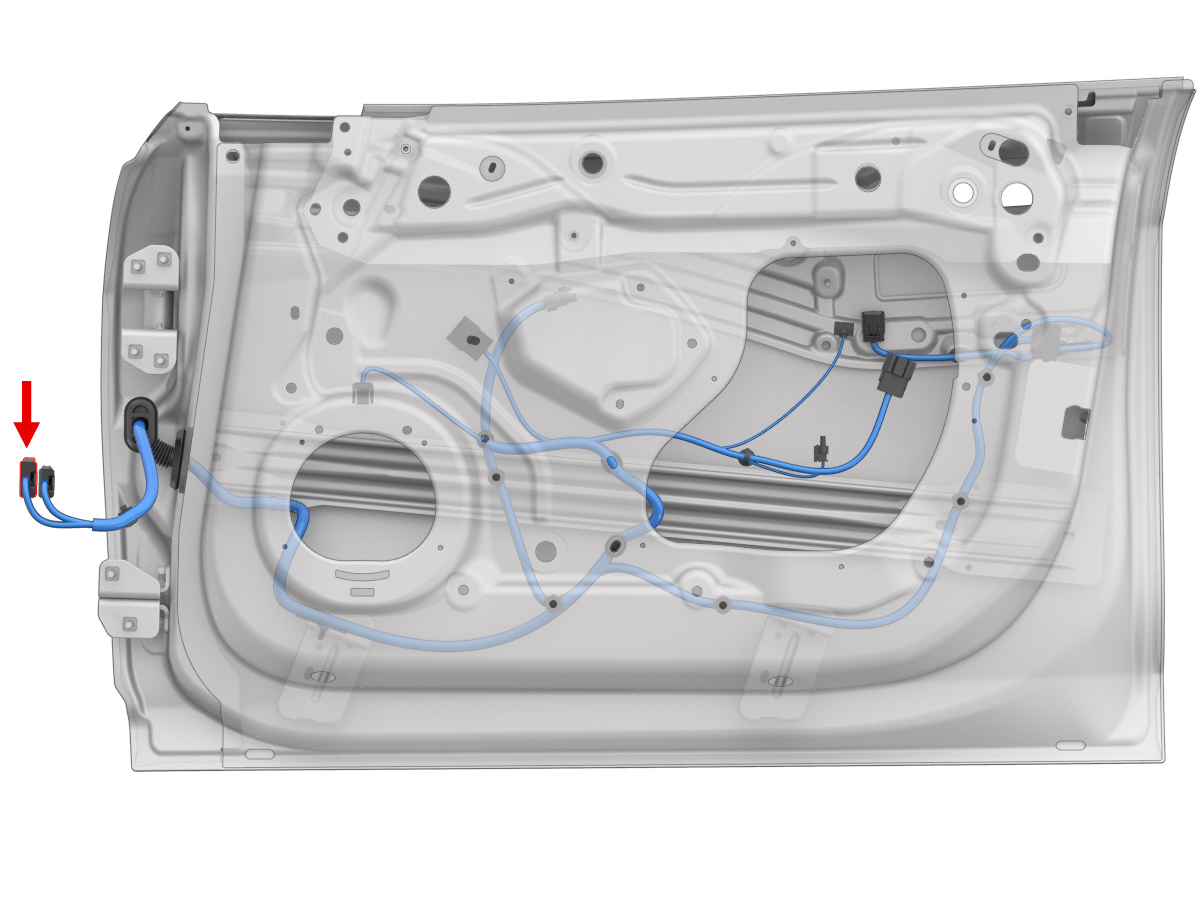

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X342	9
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X345	1
4	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X345	6
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X345	2
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X927M_1	16
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X927M_1	4
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X346	20
9	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X346	3
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X346	1
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X346	6
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X927M_1	10
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X346	10
14	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X345	3
15	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X342	8
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X342	1
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X927M_1	11
18	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X927M_1	3
19	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X927M_1	12
20	unused
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X927M_1	2
23	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X927M_1	13
24	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X346	2
25	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X346	12
26	SUMITOMO	8240-0214	1.5x0.64F	BN	1.50			X345	4
