X053B

Tesla Part Number

1042621-02-A

Connector

SUMITOMO 6098-5629

Color

BU

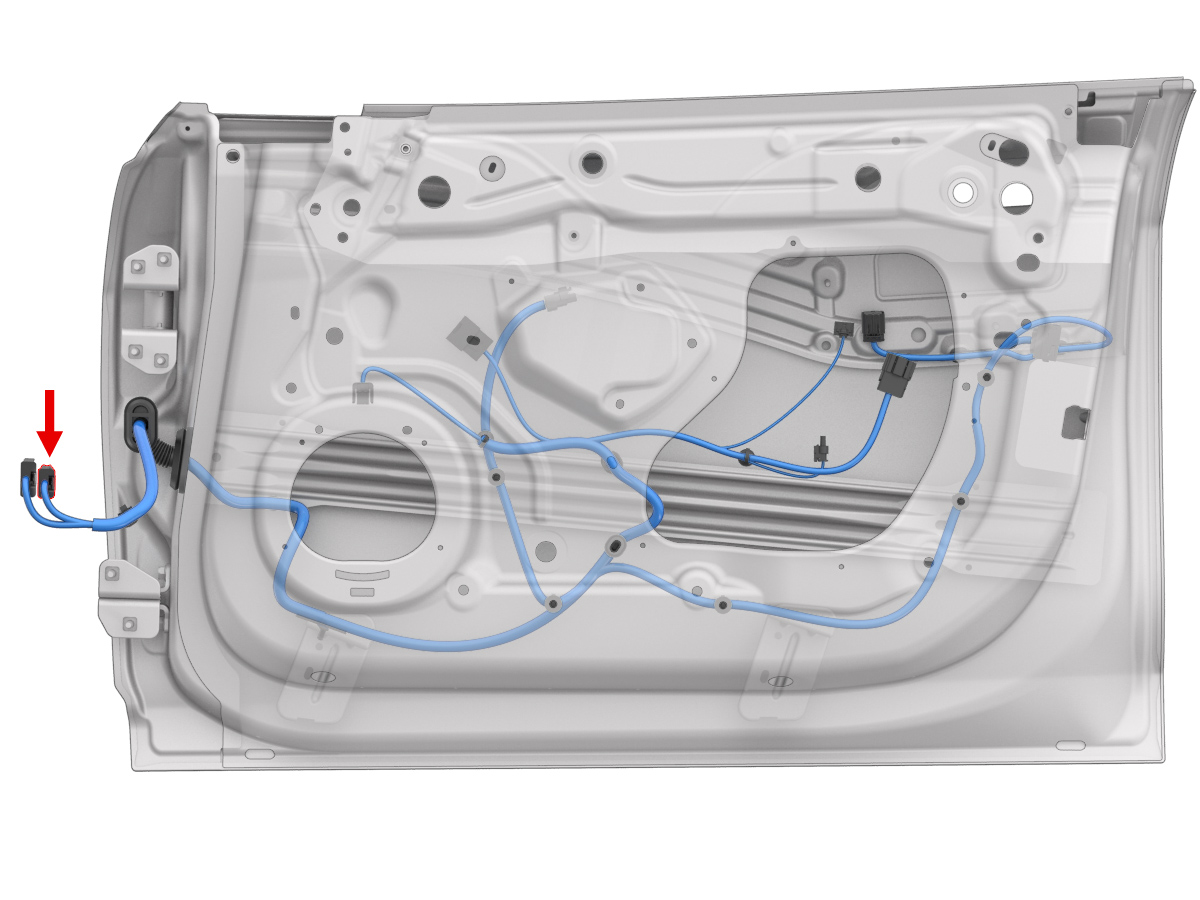

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X339	11
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X205	1
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X205	2
4	unused
5	unused
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X927M_1	8
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X339	4
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X927M_1	15
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X927M_1	7
10	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X927M_1	1
11	SUMITOMO	8240-0214	1.5x0.64F	VT	1.50			X419	1
12	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X346	17
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X927M_1	6
14	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X342	2
15	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X346	7
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X346	18
17	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X346	8
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X339	3
19	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X927M_1	9
20	SUMITOMO	8240-0214	1.5x0.64F	BN	1.50			X419	2
