X054

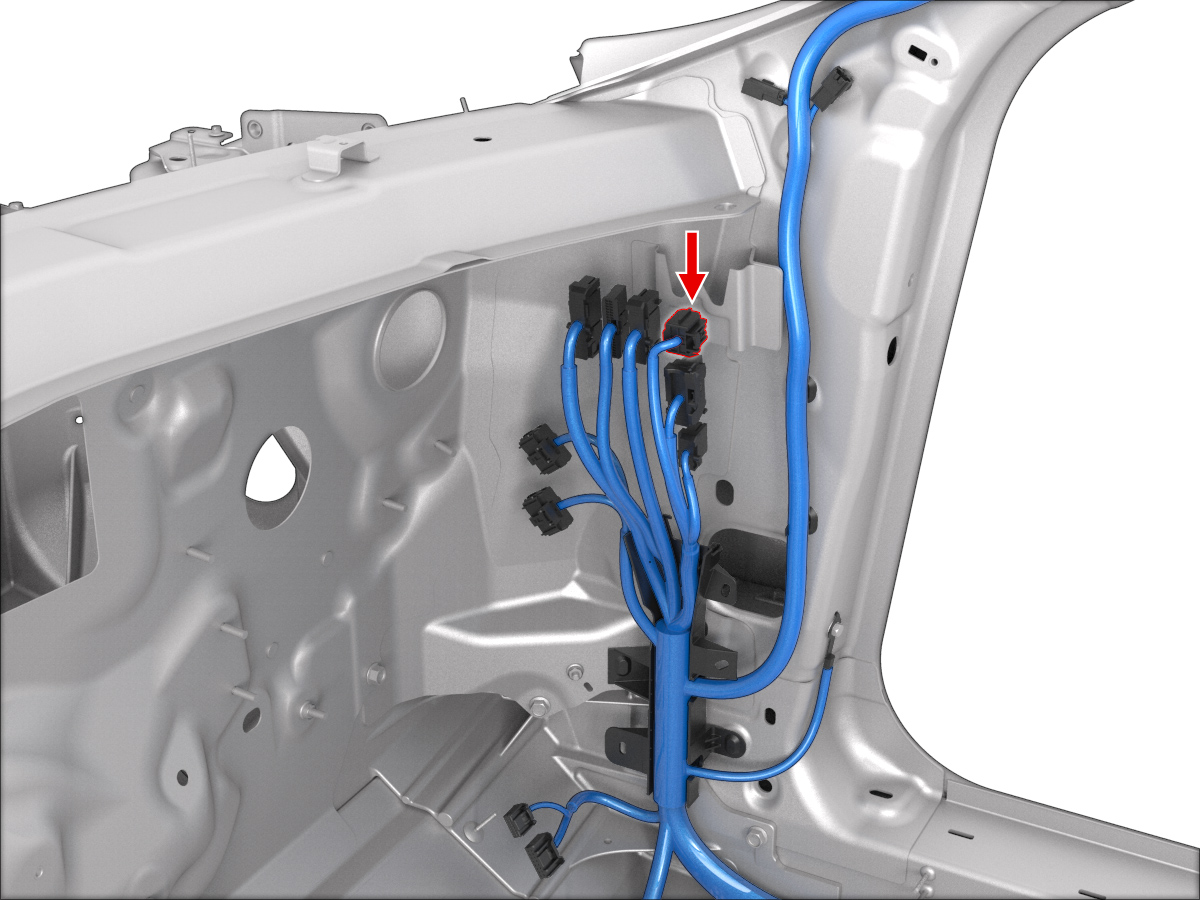

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | SUMITOMO | 8240-4932 | 4.8x0.8F | YE | 3.00 | X922M | 8 | ||
| 4 | SUMITOMO | 8240-4932 | 4.8x0.8F | VT | 3.00 | X1001 | 6 | ||
| 5 | SUMITOMO | 8240-4932 | 4.8x0.8F | RD | 3 | X447 | 6 | ||
| 6 | unused | ||||||||
