X058

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

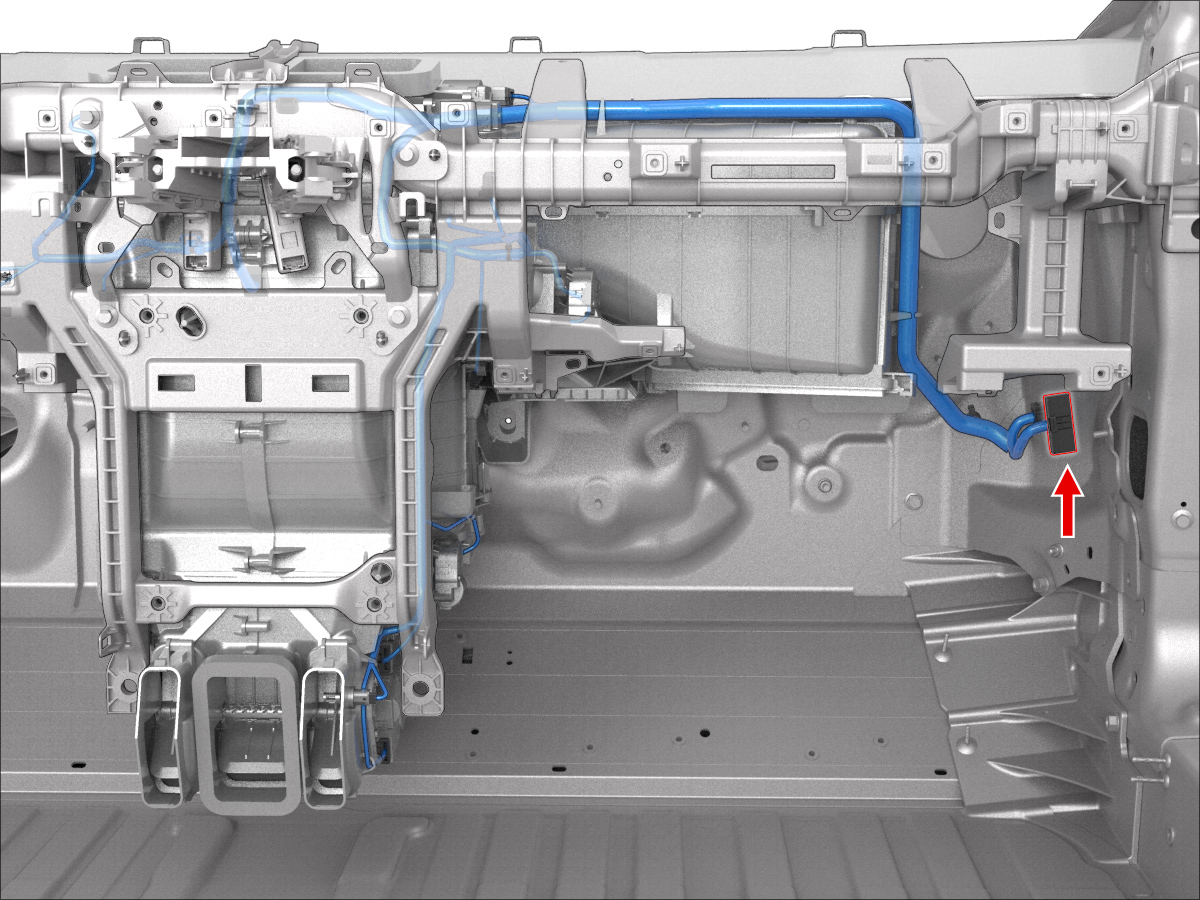

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BK/OG	0.35			X524	6
2	SUMITOMO	8100-3625	0.64x0.64F	PK	0.35			X531	5
3	SUMITOMO	8100-3625	0.64x0.64F	GY/GN	0.35			X526	6
4	SUMITOMO	8100-3625	0.64x0.64F	BK/WH	0.35			X531	6
5	SUMITOMO	8100-3625	0.64x0.64F	BK/YE	0.35			X546	5
6	SUMITOMO	8100-3625	0.64x0.64F	GY/YE	0.35			X523	6
7	SUMITOMO	8100-3625	0.64x0.64F	RD/YE	0.35			X557	5
8	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.35			X554	6
9	SUMITOMO	8100-3625	0.64x0.64F	GY/RD	0.35			X557	6
10	SUMITOMO	8100-3625	0.64x0.64F	GY/PK	0.35			X521	2
11	SUMITOMO	8100-3625	0.64x0.64F	GY/BU	0.35			X525	2
12	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X557	2
13	SUMITOMO	8100-3625	0.64x0.64F	GY/BK	0.35			X549	A
14	SUMITOMO	8100-3625	0.64x0.64F	GY/OG	0.35			X551	1
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X531	2
17	SUMITOMO	8100-3625	0.64x0.64F	PK/WH	0.35			X554	2
18	unused
19	SUMITOMO	8100-3625	0.64x0.64F	VT/RD	0.35			X524	5
20	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X526	5
21	SUMITOMO	8100-3625	0.64x0.64F	GY/VT	0.35			X546	6
22	unused
23	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X525	5
24	SUMITOMO	8100-3625	0.64x0.64F	RD/BN	0.35			X523	5
25	SUMITOMO	8100-3625	0.64x0.64F	BK/BN	0.35			X554	5
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X521	6
27	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X525	6
28	SUMITOMO	8100-3625	0.64x0.64F	WH/YE	0.35			X521	5
29	SUMITOMO	8100-3625	0.64x0.64F	PK/YE	0.35			X524	2
30	SUMITOMO	8100-3625	0.64x0.64F	OG/BN	0.35			X546	2
31	SUMITOMO	8100-3625	0.64x0.64F	OG/GN	0.35			X553	2
32	SUMITOMO	8100-3625	0.64x0.64F	BK/GN	0.35			X523	2
33	SUMITOMO	8100-3625	0.64x0.64F	GN/RD	0.35			X530	A
34	SUMITOMO	8100-3625	0.64x0.64F	GN/OG	0.35			X526	2
35	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35
36	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35
37	SUMITOMO	8100-3625	0.64x0.64F	VT/BU	0.35			X550	A
38	SUMITOMO	8100-3625	0.64x0.64F	VT/YE	0.35			X547	A
39	SUMITOMO	8100-3625	0.64x0.64F	VT/BK	0.35			X553	5
40	SUMITOMO	8100-3625	0.64x0.64F	VT/OG	0.35			X553	6
