X096

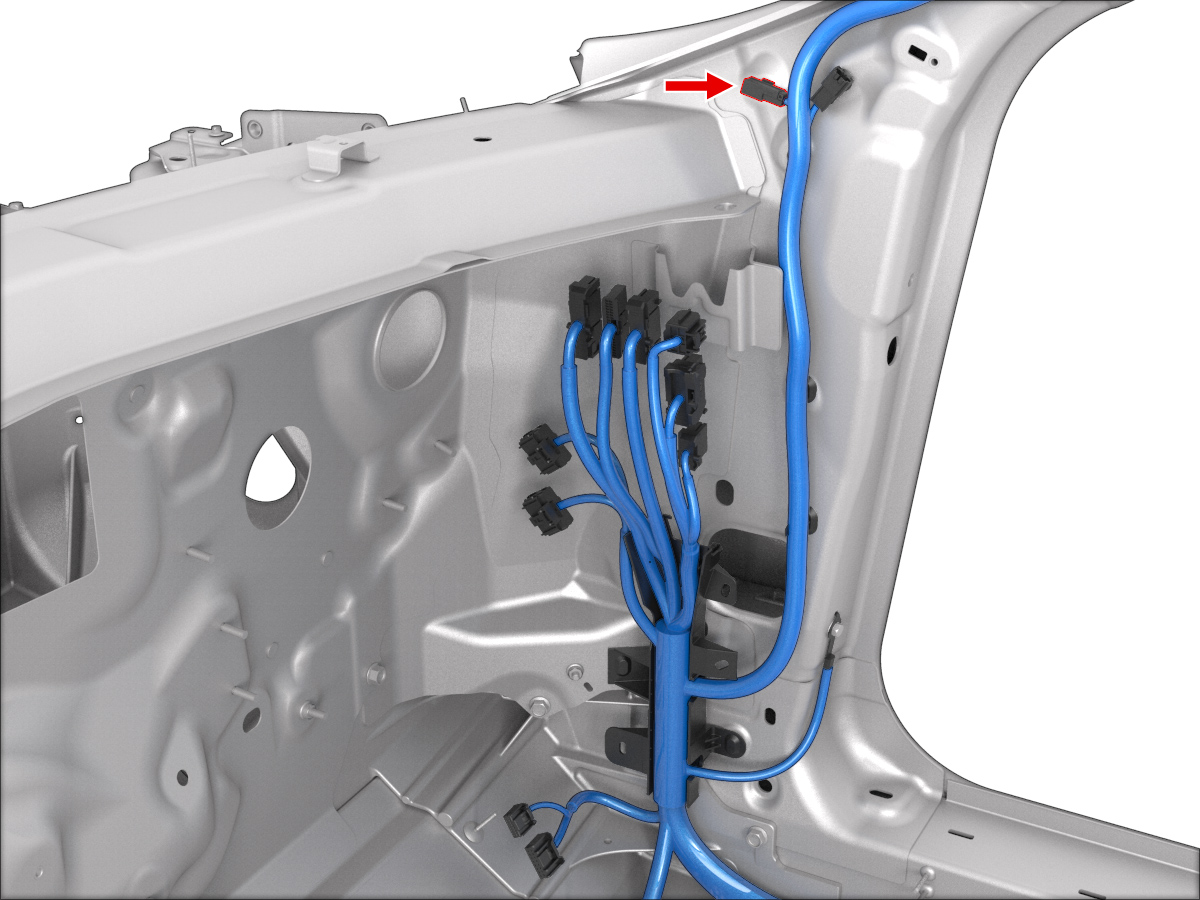

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 173645-2 | 1.8x0.64M | BU | 0.75 | X050A | 29 | ||
| 2 | AMP | 173645-2 | 1.8x0.64M | BK | 0.75 | G640 | 1 |
