X1024

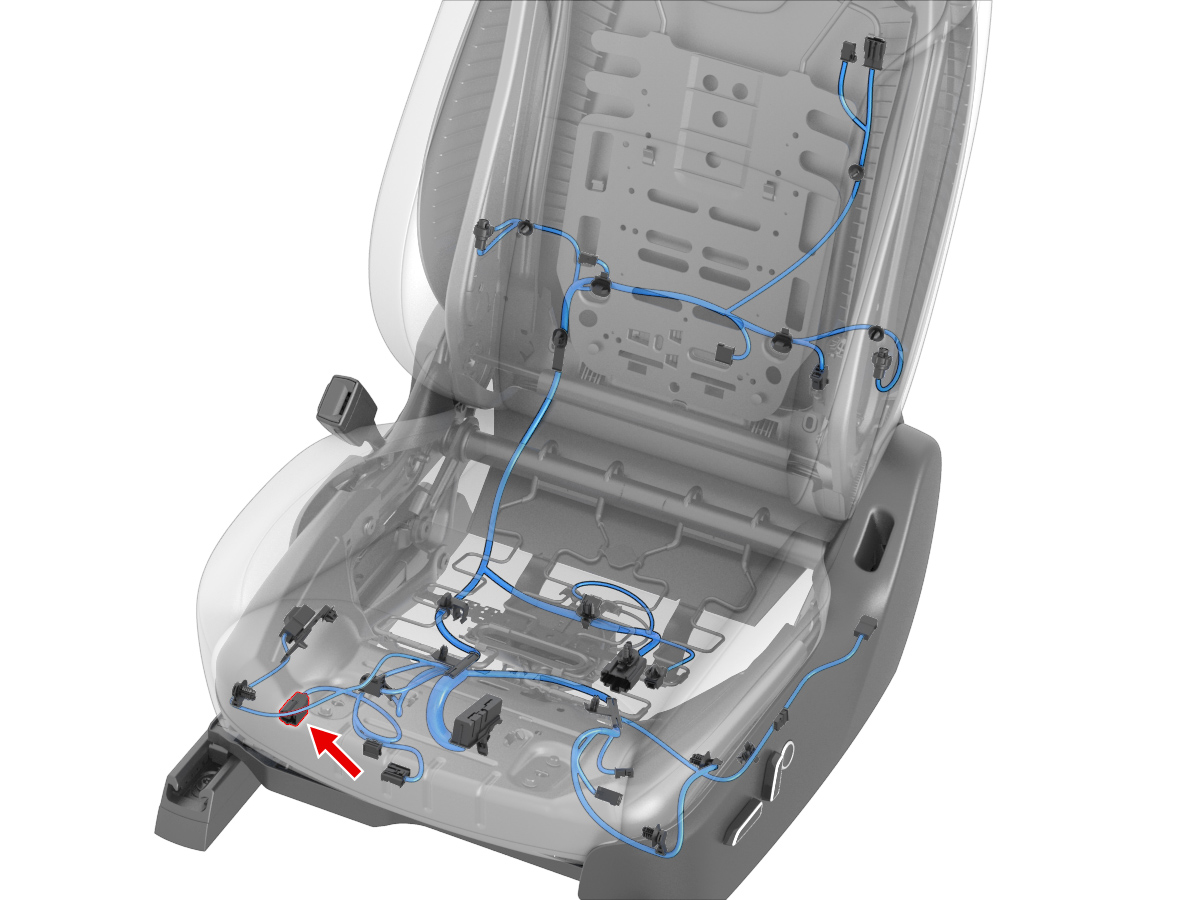

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33468-0022 | 0.64x0.64F | GN | 0.35 | TESLA | MAT-120-206 | X1002 | 4 |
| 2 | MOLEX | 33468-0022 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-206 | X1002 | 3 |
