X107

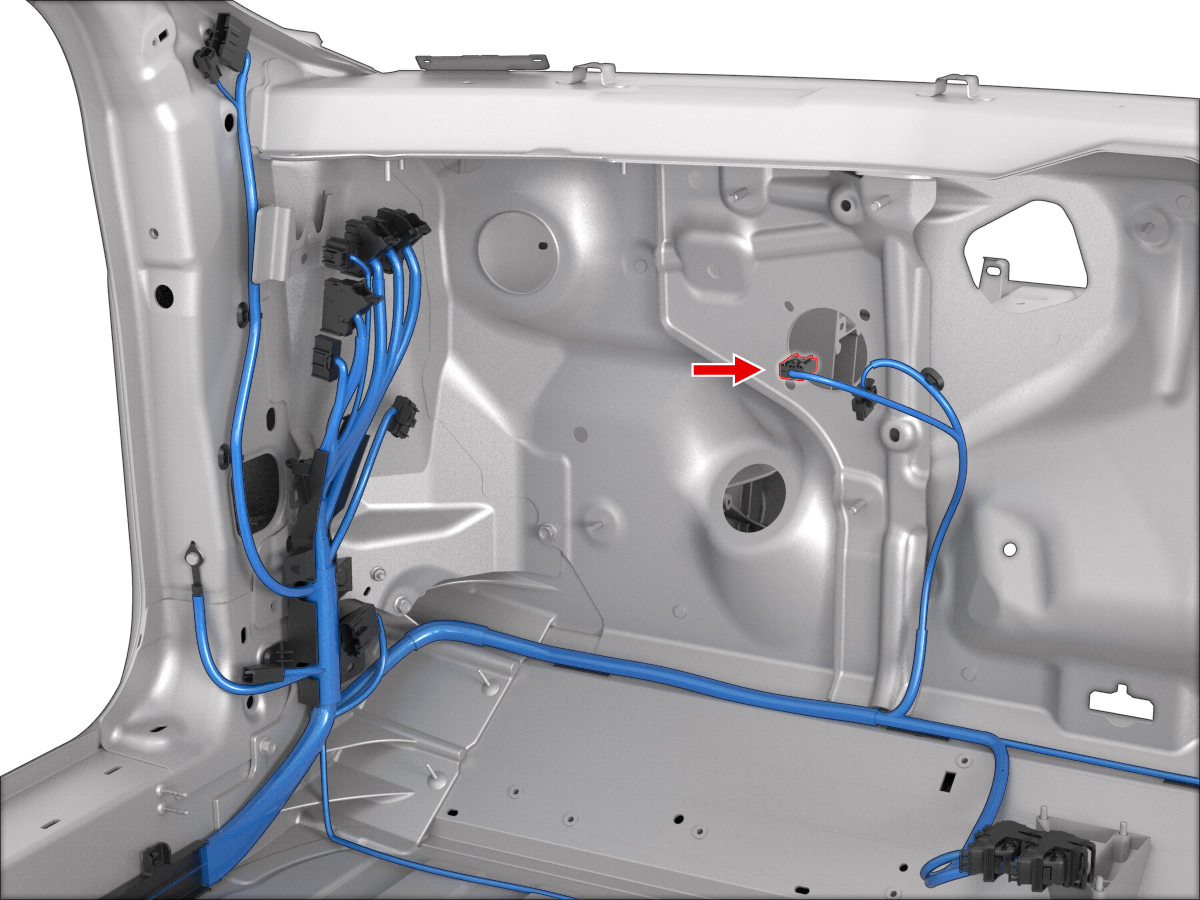

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4270-02 | 2.8x0.8F | GN | 0.50 | X032 | 7 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | YAZAKI | 7116-4270-02 | 2.8x0.8F | BK | 0.50 | G660 | 1 | ||
