X1477

Tesla Part Number

1103958-00-D

Connector

TESLA 1103958-00-D

Color

NA

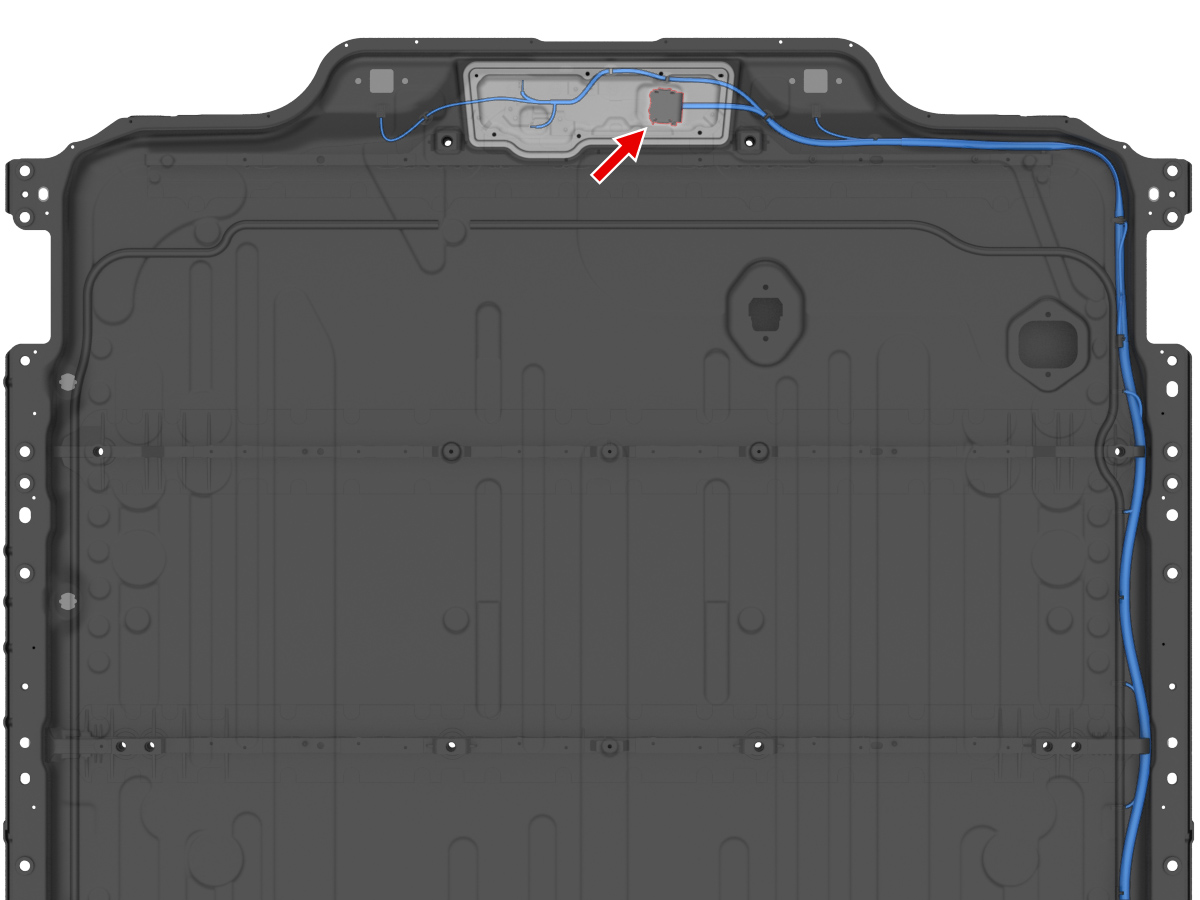

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	LEAR	26700201185	2.8x0.8F	WH	0.35			X1478	3
2	LEAR	26700201185	2.8x0.8F	GY	0.35			X1479	18
3	LEAR	26701201185	2.8x0.8F	RD	0.75			X1479	35
4	LEAR	26701201185	2.8x0.8F	WH	0.75			X1479	36
5	LEAR	26700201185	2.8x0.8F	BU	0.35			X1479	4
6	LEAR	26700201185	2.8x0.8F	YE	0.35			X1479	17
7	LEAR	26701201185	2.8x0.8F	BU	0.75			X1479	43
8	LEAR	26701201185	2.8x0.8F	RD	0.75			X1479	37
9	LEAR	26700201185	2.8x0.8F	GN	0.35			X1479	3
10	LEAR	26700201185	2.8x0.8F	WH	0.35			X1481	4
