X166

Tesla Part Number

1042609-00-A

Connector

SUMITOMO 6098-6104

Color

WH

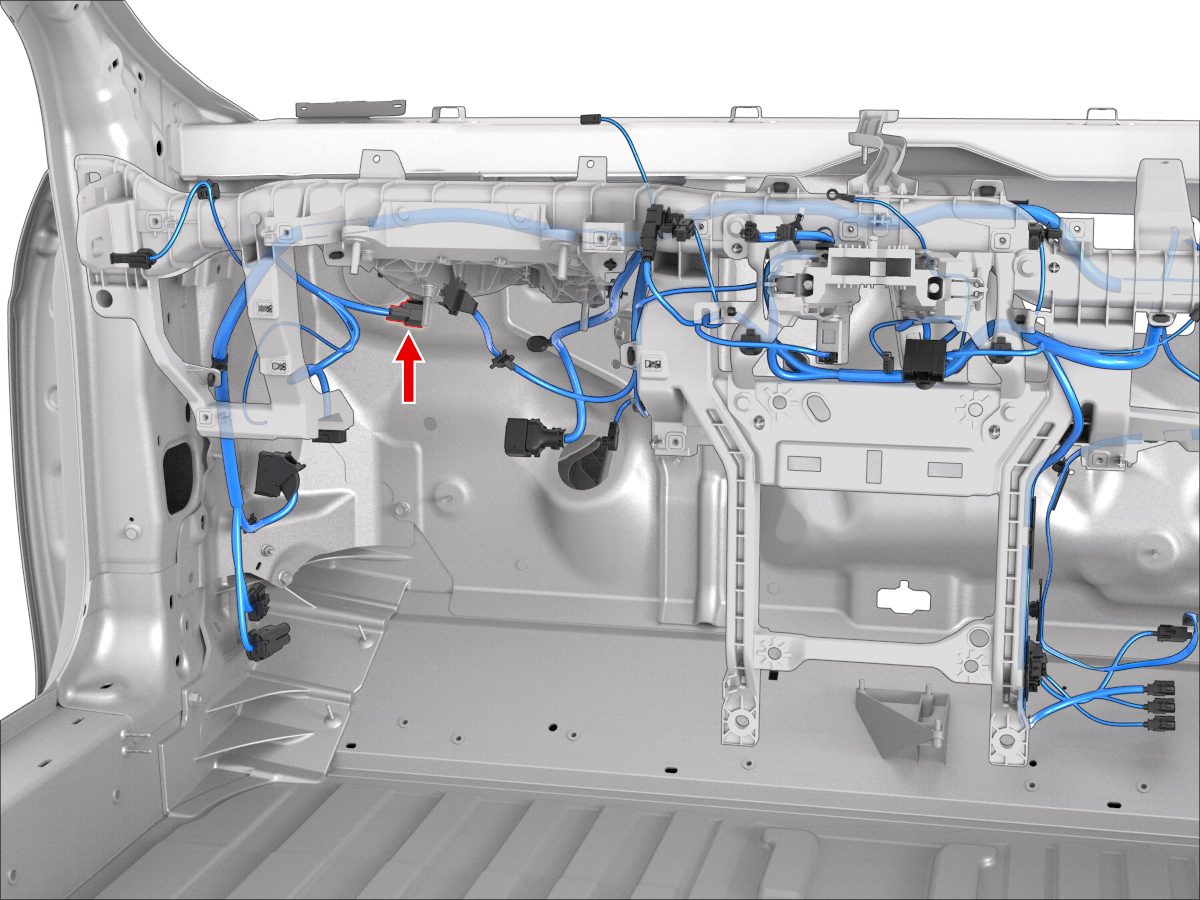

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X035	35
2	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X035	3
3	unused
4	unused
5	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X035	33
6	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X035	34
7	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X035	39
8	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
9	unused
10	unused
11	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X035	40
12	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
