X189

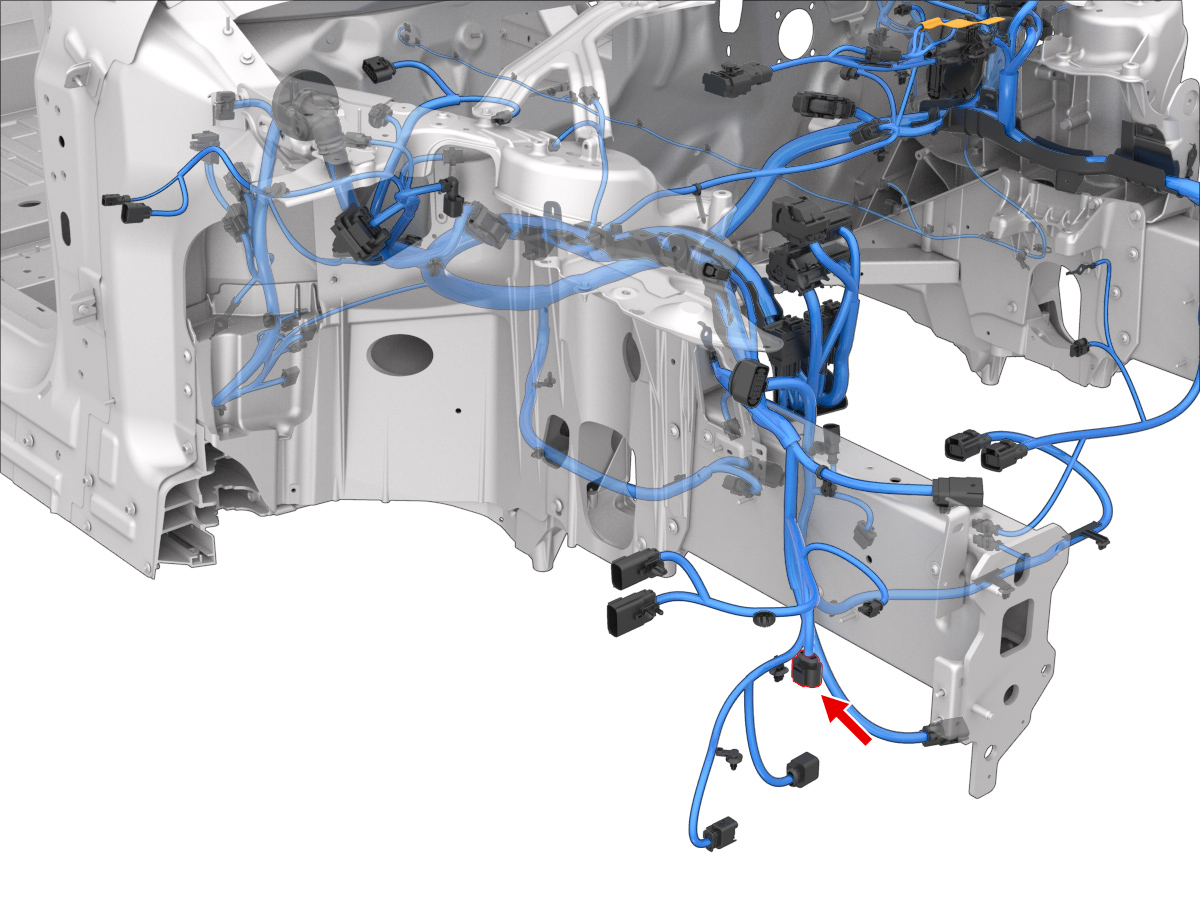

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | AMP | 1394133-1 | X177 | 18 | |||
| 2 | TN | 0.35 | AMP | 1394133-1 | X177 | 16 | |||
| 3 | GN | 0.35 | AMP | 1394133-1 | X177 | 17 | |||
| 4 | VT | 0.35 | AMP | 1394133-1 | X177 | 20 | |||
| 5 | BN | 0.35 | AMP | 1394133-1 | X177 | 6 | |||
| 6 | YE | 0.35 | AMP | 1394133-1 | X177 | 5 | |||
| 7 | BK | 0.35 | AMP | 1394133-1 | X176 | 16 | |||
| 8 | BU | 0.35 | AMP | 1394133-1 | X177 | 19 | |||
| 9 | VT | 0.35 | AMP | 1394133-1 | X176 | 17 | |||
| 10 | WH | 0.35 | AMP | 1394133-1 | X176 | 12 |
