X193

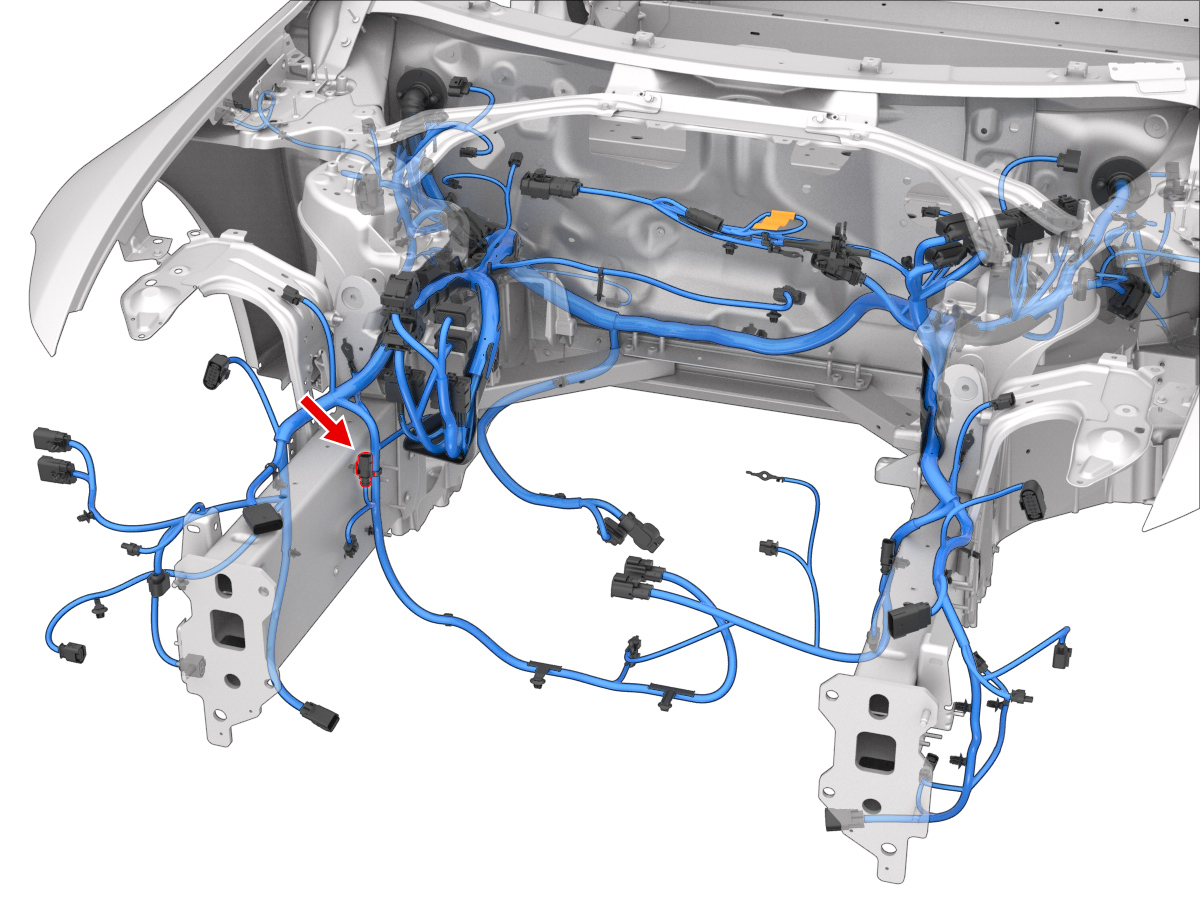

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964269-2 | 1.6x0.6MS | GN/WH | 0.50 | AMP | 1394133-1 | X179 | 8 |
| 2 | AMP | 964269-2 | 1.6x0.6MS | BU/WH | 0.50 | AMP | 1394133-1 | X179 | 3 |
| 3 | AMP | 964269-2 | 1.6x0.6MS | VT | 0.50 | AMP | 1394133-1 | X179 | 9 |
| 4 | AMP | 964269-2 | 1.6x0.6MS | BN/WH | 0.50 | AMP | 1394133-1 | X179 | 10 |
