X250

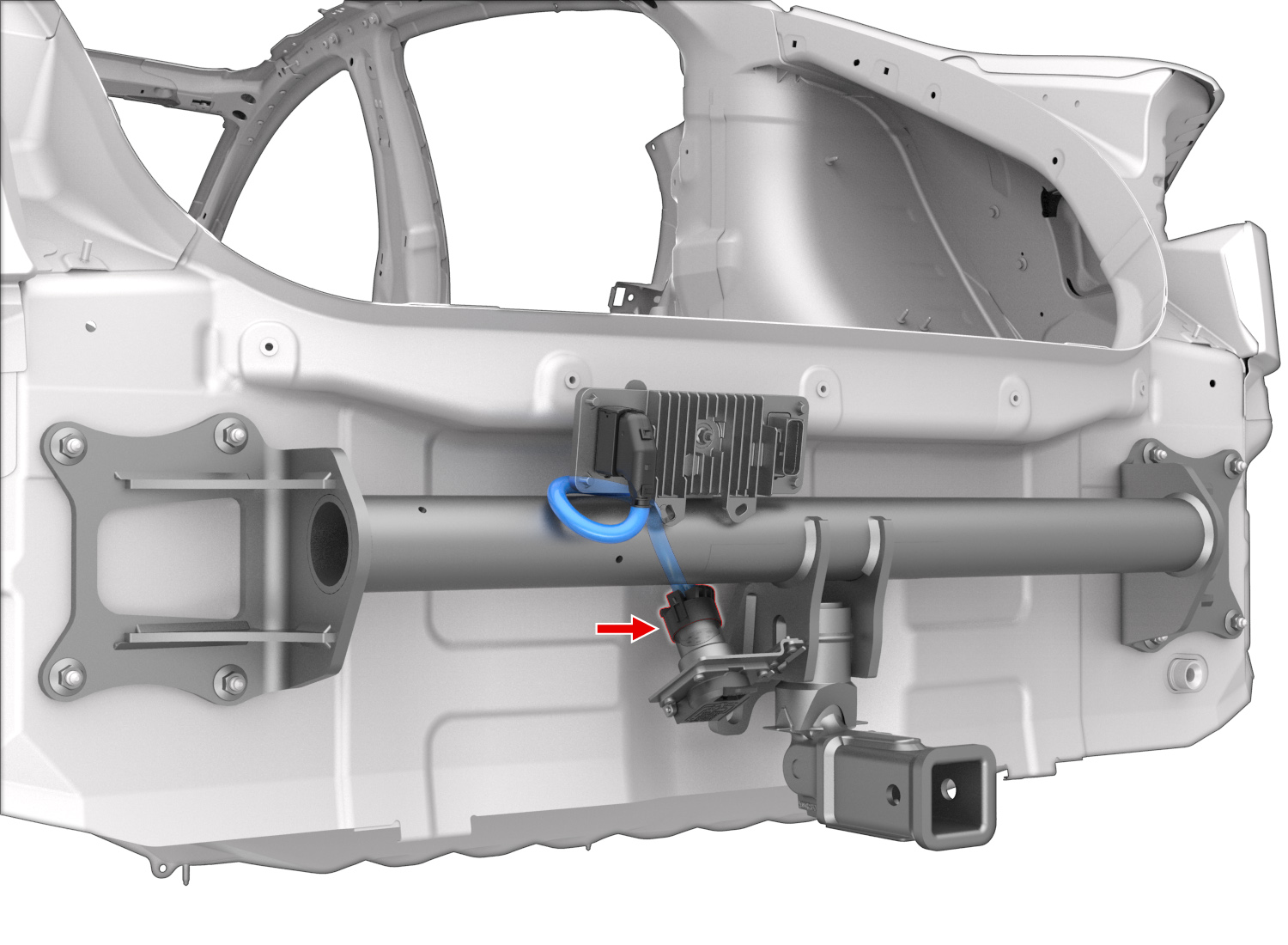

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| G | DELPHI | 12129409 | 0.32x3.7 | YE | 1.50 | DELPHI | 15324984 | X256 | 11 |
| B | DELPHI | 12052456 | 0.8x6.3 | WH | 4.00 | DELPHI | 15324994 | ||
| C | DELPHI | 12110845 | 0.32x3.7 | BU | 2.00 | DELPHI | 15324982 | X256 | 1 |
| D | DELPHI | 12129409 | 0.32x3.7 | GN | 1.50 | DELPHI | 15324984 | X256 | 13 |
| E | DELPHI | 12110845 | 0.32x3.7 | BK | 2.00 | DELPHI | 15324982 | X256 | 6 |
| F | DELPHI | 12129409 | 0.32x3.7 | BN | 1.50 | DELPHI | 15324984 | X256 | 10 |
| A | DELPHI | 12129409 | 0.32x3.7 | VT | 1.50 | DELPHI | 15324984 | X256 | 7 |
