X255

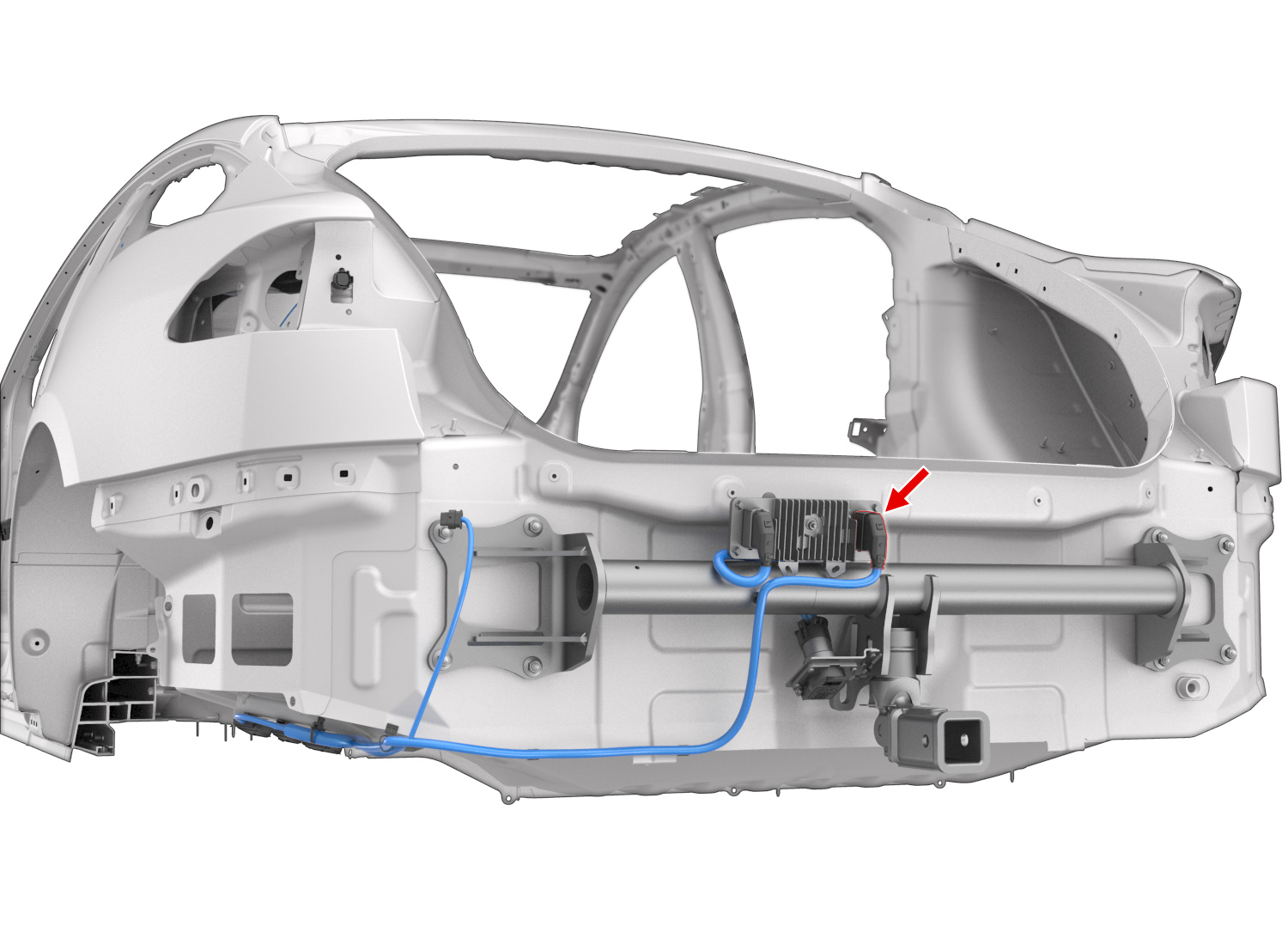

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | AMP | 1241416-1 | 6.3x0.8F | RD | 3.00 | AMP | 1823111-1 | X030B | 11 |
| 3 | AMP | 1-968855-1 | 2.8x0.8FS | GN | 0.50 | AMP | 828904-1 | X031 | 6 |
| 4 | AMP | 1-968857-1 | 2.8x0.8FS | VT | 2.50 | AMP | 828905-1 | X034 | 2 |
| 5 | AMP | 1-968857-1 | 2.8x0.8FS | BU | 2.00 | AMP | 828905-1 | X570 | 1 |
