X256

Tesla Part Number

1761882-00-A

Connector

AMP 1-1563878-1

Color

BK

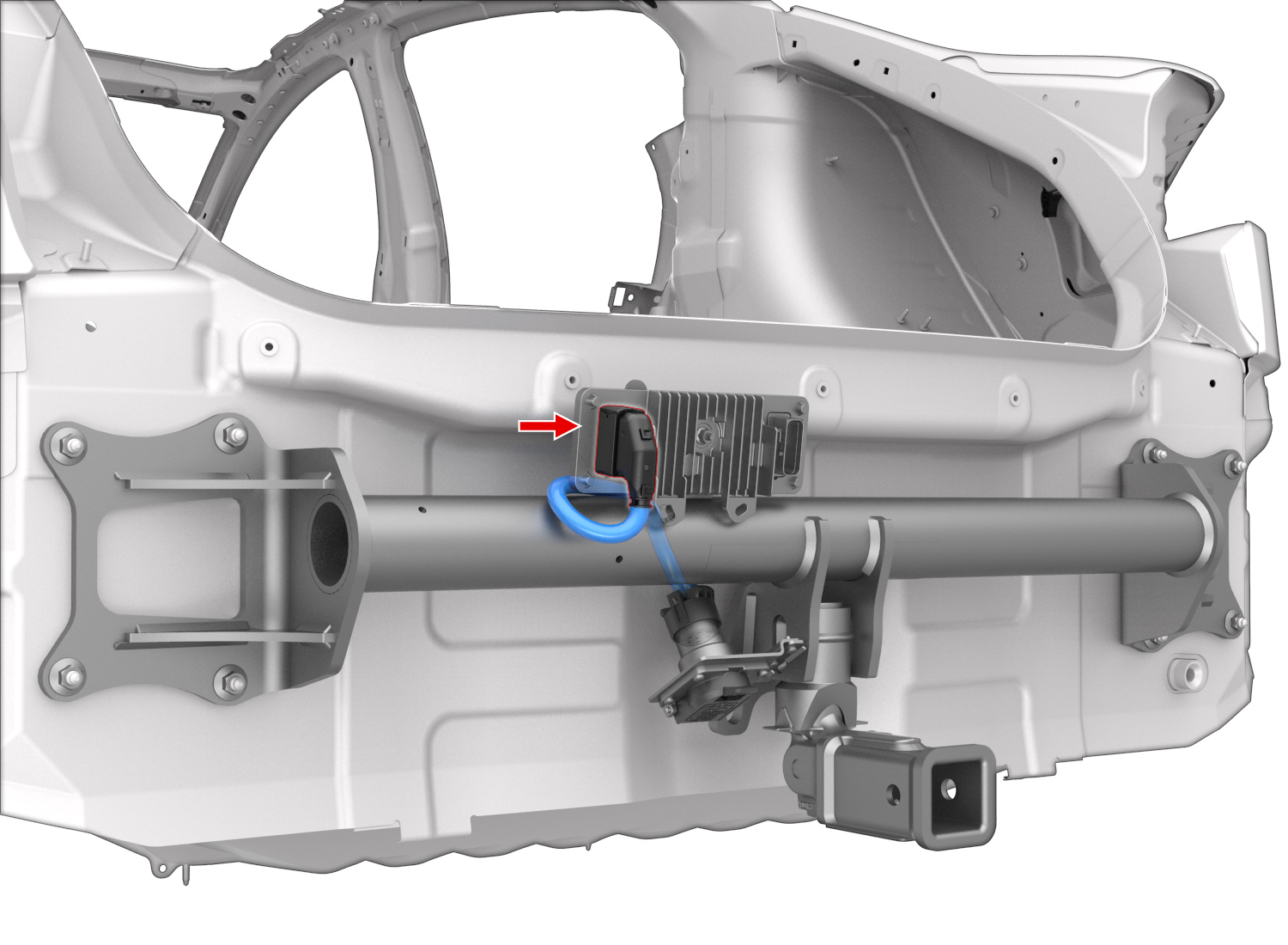

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1-968857-1	2.8x0.8FS	BU	2.00	AMP	828905-1	X250	C
2	AMP	1-968857-1	2.8x0.8FS	WH	2.50	AMP	828905-1
3	AMP	1-968857-1	2.8x0.8FS	WH	2.50	AMP	828905-1
4	AMP	1-968857-1	2.8x0.8FS	WH	2.50	AMP	828905-1
5	AMP	1-968857-1	2.8x0.8FS	GY	2.00	AMP	828905-1	X251	10
6	AMP	1-968857-1	2.8x0.8FS	OG	2.00	AMP	828905-1	X251	9
7	AMP	1418884-1	1.5x0.6FS	VT	1.50	AMP	2287497-1	X250	A
8	AMP	1418884-1	1.5x0.6FS	RD	1.50	AMP	2287497-1	X251	6
9	AMP	1418884-1	1.5x0.6FS	BK	1.50	AMP	2287497-1	X251	7
10	AMP	1418884-1	1.5x0.6FS	BN	1.50	AMP	2287497-1	X251	5
11	AMP	1418884-1	1.5x0.6FS	YE	1.50	AMP	2287497-1	X251	1
12	AMP	1418884-1	1.5x0.6FS	BU	1.50	AMP	2287497-1	X251	2
13	AMP	1418884-1	1.5x0.6FS	GN	1.50	AMP	2287497-1	X251	4
14	unused
15	unused
