X265

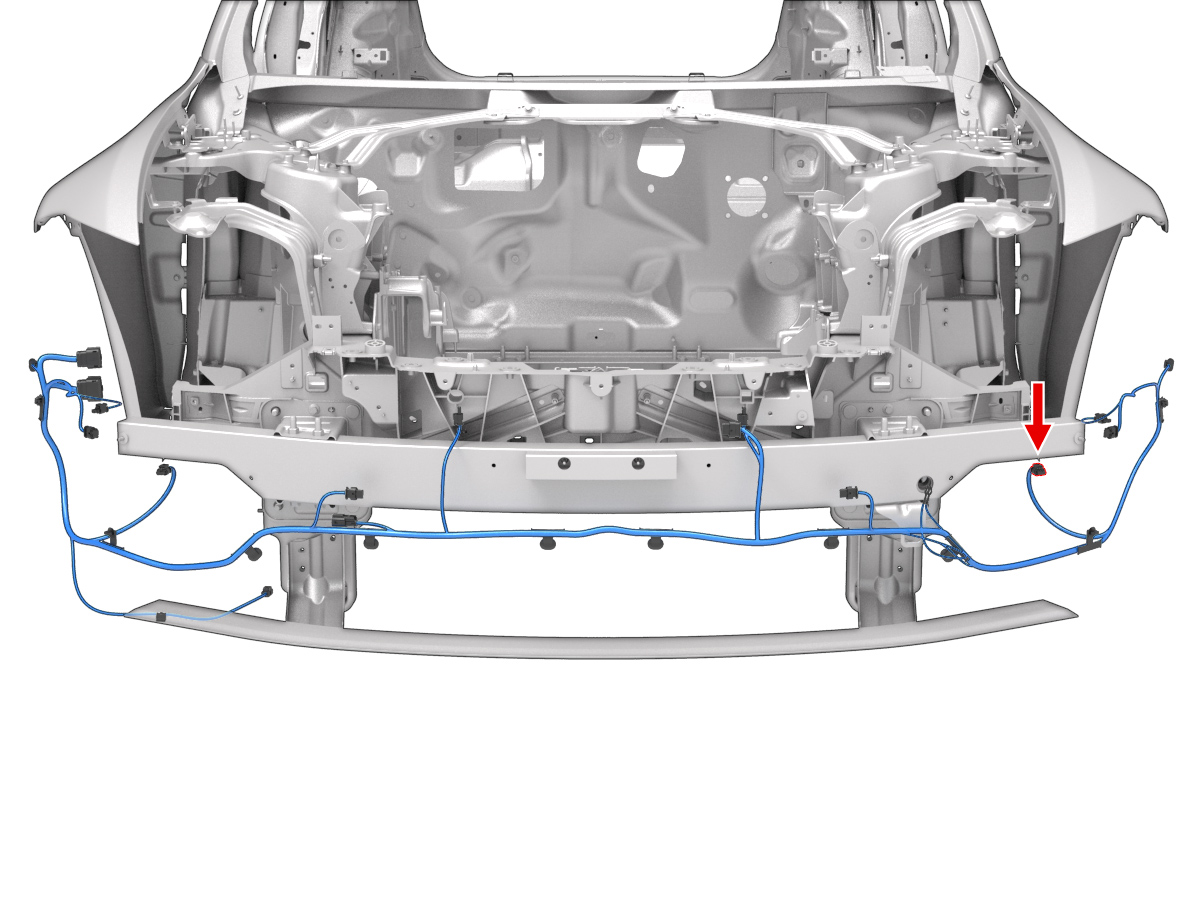

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | TN | 0.50 | AMP | 967067-1 | X964F | 19 |
| 2 | AMP | 7-1452668-1 | 1.2x0.6FS | YE | 0.50 | AMP | 967067-1 | X964F | 12 |
| 3 | AMP | 7-1452668-1 | 1.2x0.6FS | BK | 0.50 | AMP | 967067-1 |
