X315

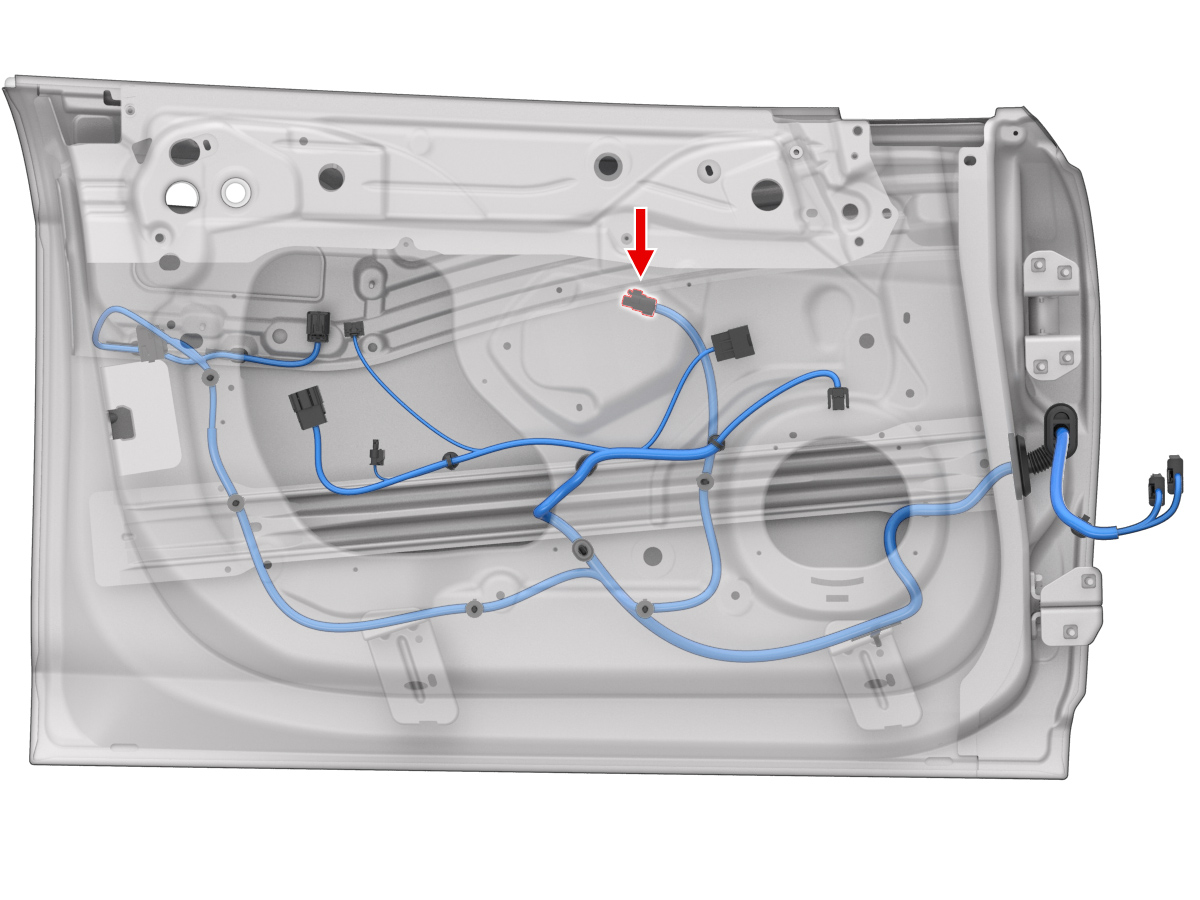

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 211CC2S1160P | 1.5x0.8F | RD | 0.50 | TESLA | MAT-140-280 | X033A | 3 |
| 2 | FCI | 211CC2S1160P | 1.5x0.8F | VT | 0.50 | TESLA | MAT-140-280 | X033A | 5 |
| 3 | FCI | 211CC3S2120 | 2.8x0.8F | GN | 1.50 | TESLA | MAT-160-345 | X033A | 14 |
| 4 | FCI | 211CC3S2120 | 2.8x0.8F | BN | 1.50 | TESLA | MAT-160-345 | X033A | 26 |
| 5 | FCI | 211CC2S1160P | 1.5x0.8F | BN | 0.50 | TESLA | MAT-140-280 | ||
| 6 | FCI | 211CC2S1160P | 1.5x0.8F | GY | 0.50 | TESLA | MAT-140-280 | X033A | 4 |
