X346

Tesla Part Number

1015412-00-A

Connector

YAZAKI 7282-6568-40

Color

GY

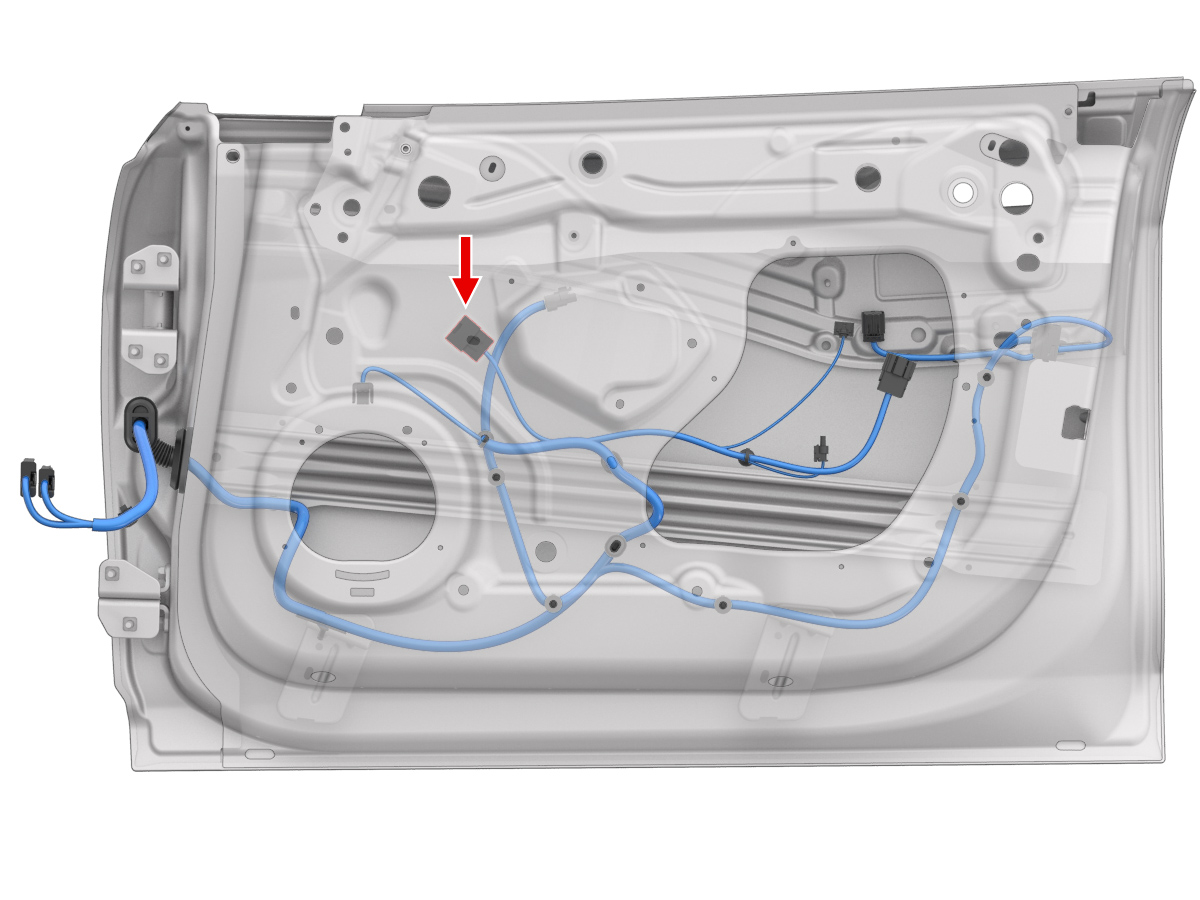

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7114-4720-02	0.64x0.64M	GN	0.35			X053A	10
2	YAZAKI	7114-4720-02	0.64x0.64M	YE	0.35			X053A	24
3	YAZAKI	7114-4720-02	0.64x0.64M	GY	0.35			X053A	9
4	unused
5	unused
6	YAZAKI	7114-4720-02	0.64x0.64M	VT	0.35			X053A	11
7	YAZAKI	7114-4720-02	0.64x0.64M	GY	0.35			X053B	15
8	YAZAKI	7114-4720-02	0.64x0.64M	RD	0.35			X053B	17
9	unused
10	YAZAKI	7114-4720-02	0.64x0.64M	BN	0.35			X053A	13
11	YAZAKI	7114-4720-02	0.64x0.64M	BN	0.35
12	YAZAKI	7114-4720-02	0.64x0.64M	WH	0.35			X053A	25
13	unused
14	unused
15	unused
16	YAZAKI	7114-4720-02	0.64x0.64M	BN	0.35
17	YAZAKI	7114-4720-02	0.64x0.64M	WH	0.35			X053B	12
18	YAZAKI	7114-4720-02	0.64x0.64M	YE	0.35			X053B	16
19	unused
20	YAZAKI	7114-4720-02	0.64x0.64M	BU	0.35			X053A	8
