X360A

Tesla Part Number

1068725-00-A

Connector

AMP 1-1419168-1

Color

BK

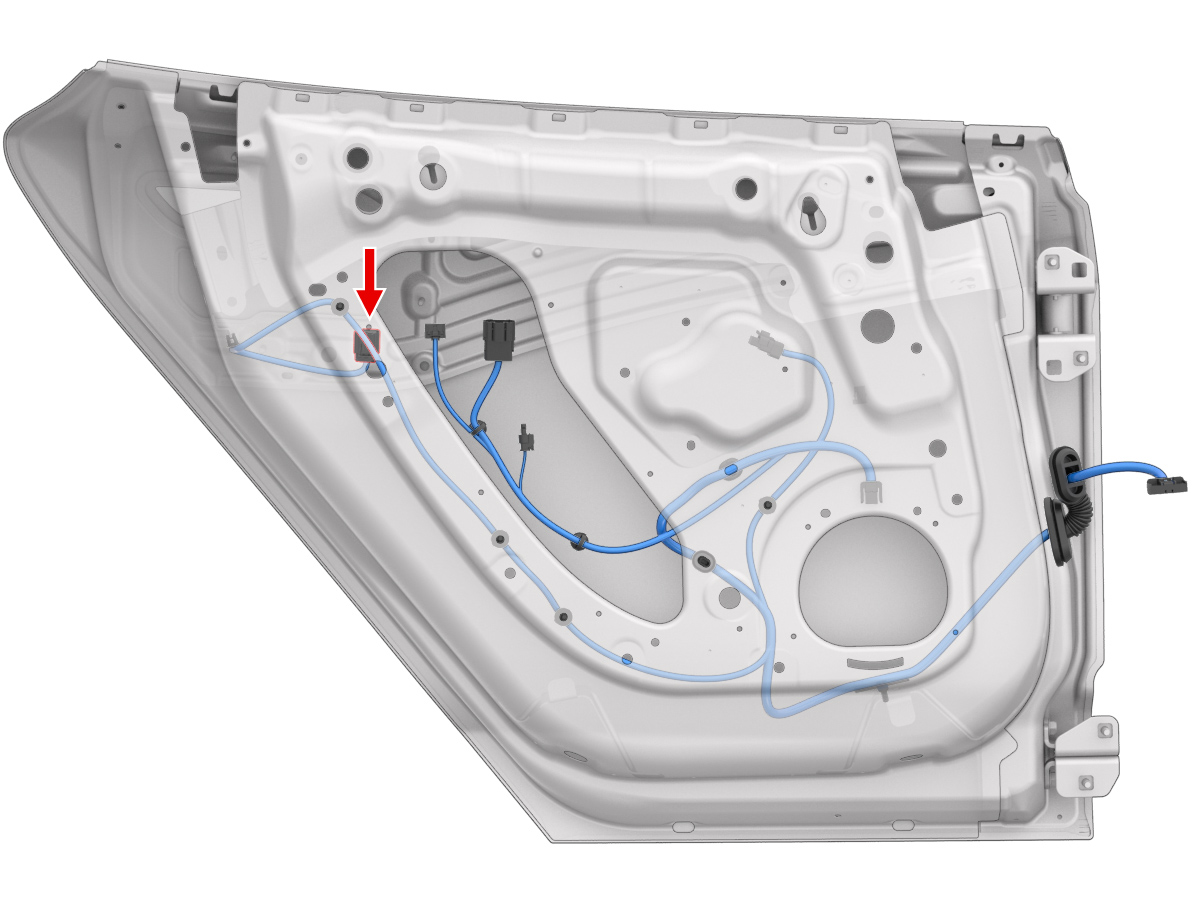

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1393367-1	1.0x0.64F	BU	0.35	TESLA	MAT-120-206	X359	1
2	AMP	1393367-1	1.0x0.64F	BN	0.35	TESLA	MAT-120-206	X359	2
3	AMP	1393367-1	1.0x0.64F	GN	0.35	TESLA	MAT-120-206	X359	8
4	AMP	1393367-1	1.0x0.64F	WH	0.35	TESLA	MAT-120-206	X359	7
5	AMP	1393367-1	1.0x0.64F	RD	0.35	TESLA	MAT-120-206	X359	6
6	AMP	1393367-1	1.0x0.64F	VT	0.35	TESLA	MAT-120-206	X359	5
